1059 Multi-ISO HF RFID Reader for Motorola MC70/75/75A

  • **Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

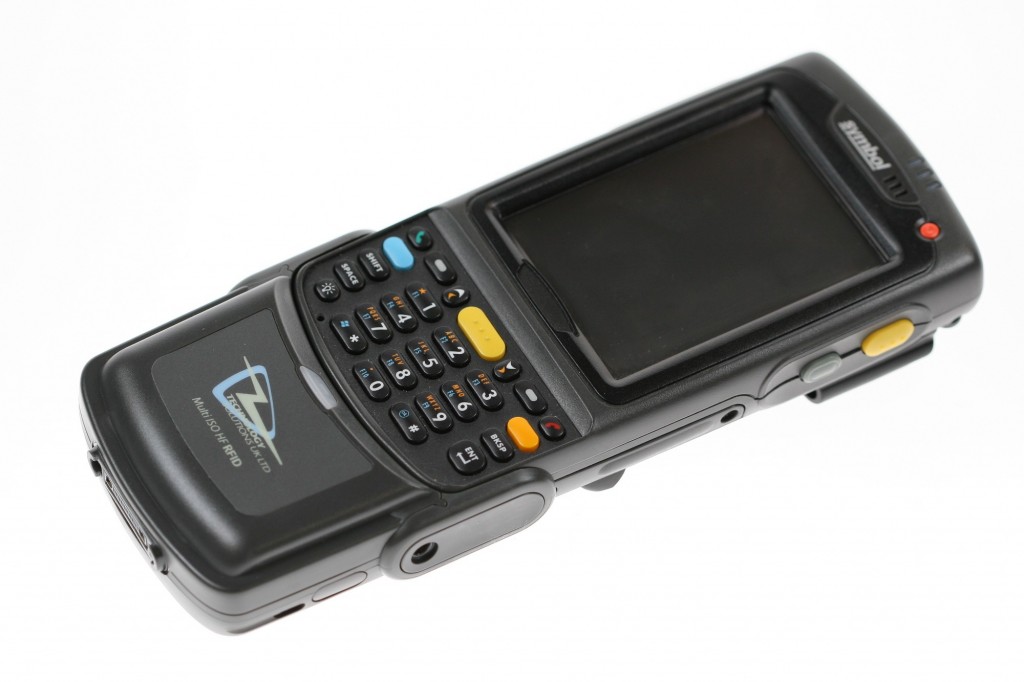

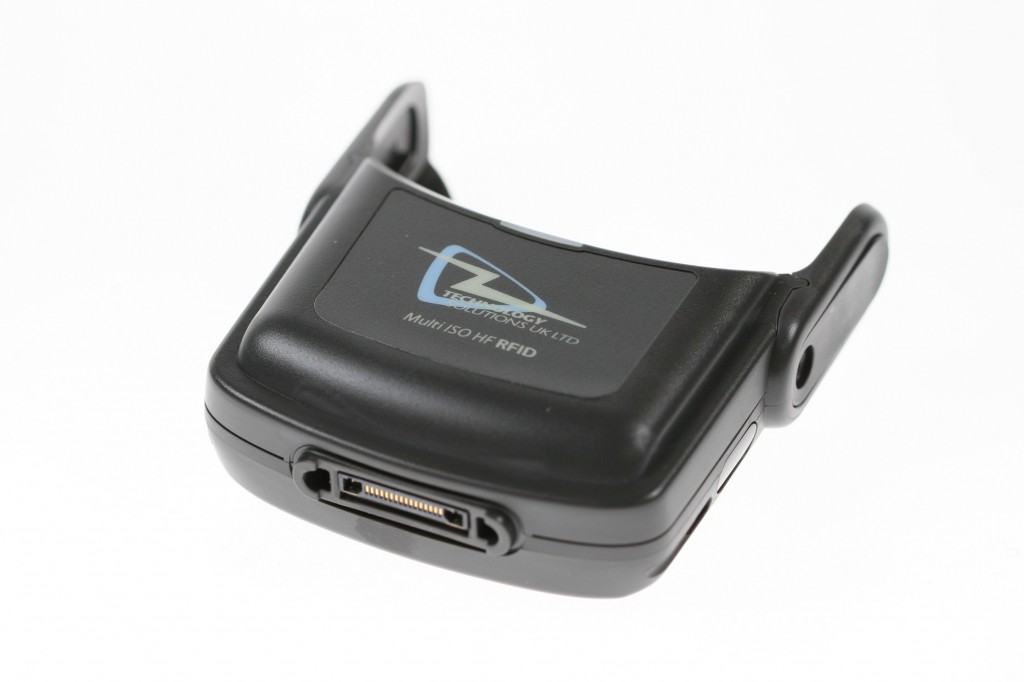

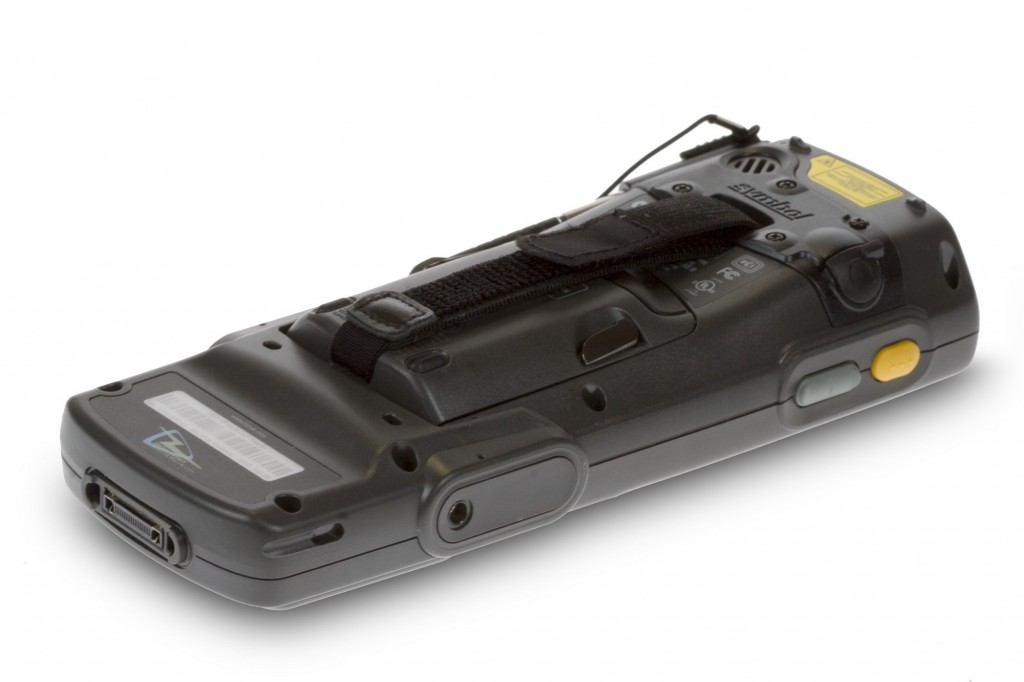

    This reader provides the Motorola™ MC70, MC75 and MC75A with the functionality of reading and writing most 13.56MHz ISO transponders. The HF RFID reader is powered from the Motorola terminal and houses both the RFID reader and the antenna.

    The Motorola MC70/75/75A retains the original laser bar code functionality as well as the original communications platform housed within the terminal. The HF RFID reader provides the ability to read and write to a wide variety of transponders at 13.56 MHz including ISO 15693, ICODE (I & II) and the complete Mifare family of ISO14443 (A&B).

  • Performance Characteristics


    RF Transmit Frequency 13.56MHz
    Supported RFID Standards ISO14443A, ISO14443B, ISO 15693, ISO 18000-3, ICODE
    Supported Tag-ICs : –  Tag-it HF-I
    –  Tag-it HF-I Light S
    –  Philips ICODE SL2
    –  Infineon ISO15693
    –  MIFARE® Standard
    –  MIFARE® 4k
    –  MIFARE® Pro
    –  MIFARE® Ultralight
    –  MIFARE® SmartMX
    –  SLE 55Rxx
    –  SRF55VxxP +S
    –  SLE 66CL160S
    –  SLE 66CLX320P
    –  SR176
    –  SRIX4K
    –  LRI 12
    –  LRI 64
    –  LRI 512
    –  EM4135
    –  KSW Temp Sense
    –  Sharp S
    –  ASK GTML
    –  ASK GTML2ISO
    –  TOSMART P064
    –  Jewel Tag (IRT0302B11 KSW)
    –  ISO14443A Tags
    –  ISO14443B Tags
    –  ISO15693 Tags
    Reading distance Up to 8cm (3″) using ISO7810 size credit card format transponders
    RF Transmission Speed Up to 848 kBit/s

    SAM support


    SAM clock 3.39MHz
    SAM VCC 5V
    SAM type Form factor compatible with GSM SIM footprint
    Current consumption < 150 mA during RFID read
      < 30mA in standby mode
      0mA in shutdown mode

    User indication


    Red, Green LEDs Flash indicating activity (function may also be customised)
    Connection Interfaces
    Physical interface USB and power in to charge MC75
    Reader power supply Powered from host terminal
    ActiveSync via USB

    Physical Characteristics


    Dimensions 90×82×32mm (3.54″x3.23″x1.26″)
    Weight 95g (3.35 oz)
    Enclosure material Polycarbonate
    Colour Grey
    Material Finish Sparked Surface
    Mechanical Attachment Snap-on action with optional locking screws
    Docking Attachment maintains dockability with Motorola docking cradle for charging and ActiveSync

    Environmental


    Operating Temperature -10°C to +50°C (14°F to 122°F)
    Storage Temperature -40°C to +60°C (-40°F to 140°F)
    Humidity Up to 90% Relative humidity Non Condensing
    Drop specification 1.3m (4.26ft) to concrete, 6 drops per 6 sides over operating temperature;
    1.5m (5ft) to concrete, 2 drops per 6 sides at ambient temperature 23ºC (73ºF)
    Sealing Internal components conformal coated
    Electrostatic discharge +/-15kV air discharge, +/-8kV direct discharge
    Construction RoHS compliant

    Regulatory


    EMI/RFI EN 300 330, EN 301 489, CE marked
      USA – FCC Part 15
    Electrical Safety Europe – EN60950-1
      USA – UL60950

    Notes

    		  All PCB’s are conformally coated


  • **Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

    1059-01-SO-MC70-RFID – Multi-ISO HF RFID Reader for Motorola MC70/75/75A
