1084 Biometric Tri-Scan Reader for MC70/75/75A

  • **Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

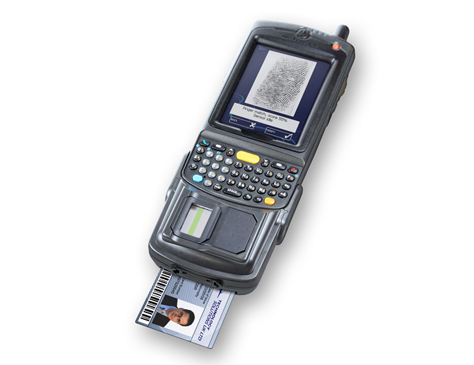

    The Biometric Tri Scan reader combines Contact Smart Card, Contactless Smart Card and Biometric Fingerprint Capture. The biometric core uses a rugged, high resolution (500dpi) optical fingerprint sensor.
    The Tri Scan reader is compatible with most contact and contactless Smart Cards including all Mifare contactless cards. The contactless card reader is hardware compatible with the CAC, TWIC, FRAC cards as well as ICAO ePassports.

    Please Note: This is a semi-custom, built-to-order product – minimum order quantities apply. Please contact TSL to discuss your requirements.

  • **Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

    Physical Characteristics
    Dimensions 90 x 82 x 36mm (3.54″ x 3.23″ x 1.42″)
    Weight 110g
    Enclosure Material GE Lexan Polycarbonate
    Colour Grey
    Material finish Sparked Surface
    Mechanical Attachment Snap-On with optional locking screws
    Docking Attachment maintains dockability with
    Motorola docking cradle for charging and
    ActiveSync
    Environmental
    Operating Temperature -10°C to +50°C (14°F to 122°F)
    Storage Temperature -40°C to +60°C (-40°F to 140°F)
    Humidity Up to 90% Relative humidity Non Condensing
    Drop Spec: 1.3m (4.26ft) to concrete, 6 drops per 6
    sides over operating temperature; 1.5m (5ft)
    to concrete, 2 drops per 6 sides at ambient
    temperature 23ºC (73ºF)
    Sealing: Internal components conformal coated
    Electrostatic
    Discharge (ESD):
    +/-15kV air discharge, +/-8kV direct
    discharge
    Construction RoHS compliant
    Fingerprint Sensor
    Sensor resolution: 500dpi
    Identification time
    (1:500):
    1s typical
    Authentication time
    (1:1):
    0.9s typical
    False Acceptance
    Rate (FAR):
    Adjustable down to 10-8
    Pixel array: 256 x 400 pixels
    Sensor area: 14 x 22 mm
    ESD protection: IEC 61000-4-2 Level 4 ±15kV
    Raw image size: Approximately 100kbyte
    Template size: Algorithm dependent – typically 100-400
    bytes
    Local storage
    capacity:
    500 users, 1000 templates
    Contact Smartcard Reader
    Compliance: ISO7816-1,2,3,4 PC/SC, EMV2000 Level 1
    capable.
    Connector: Meets ISO 7816-2, rated for >100 000
    insertions.
    Card size: Full (ID-1)
    Card support: Up to 420Kbps card interface, clock
    frequency up to 8MHz, 5V, 3V, 1.8V smart
    cards.
    Contactless Smartcard Reader
    RF Transmit
    Frequency :
    +/-15kV air discharge, +/-8kV direct
    discharge
    Supported RFID
    Standards:
    RoHS compliant
    Supported
    Contactless cards:
    ISO15693
    ISO14443A/B
    Philips: MIFARE®, DESFire®, MIFARE ProX®,
    SMART MX, and iCode®
    Reading distance: Intended for in-slot card reading, capable of
    reading up to 2.5cm (1”) from back surface
    dependent on transponder type.
    Connection Interfaces
    Charging of host
    terminal:
    Host terminal charged through the reader
    Reader power
    supply:
    Powered from host terminal
    ActiveSync: via USB, automatically switched when
    connected to a PC
    Regulatory
    Electrical Safety: IEC 60950-1:2005 Second Edition (National
    and group differences in accordance with CB
    Bulletin dated 2010-01-29)
    UL 60950-1 Second Edition
    CAN/CSA-C22.2 No. 60950-1-07
    EMI/RFI: EN 301 489-3 V1.4.1
    EN 302 291-2 V1.1.1
    FCC Rule Part 15, Subpart B – Unintentional
    Radiators, Class B limits
    FCC Rule Part 15.225

  • 1084-03-SO-TSR – Biometric Tri-Scan Reader for MC70/75/75A

    Please Note: This is a semi-custom, built-to-order product – minimum order quantities apply. Please contact TSL to discuss your requirements.
