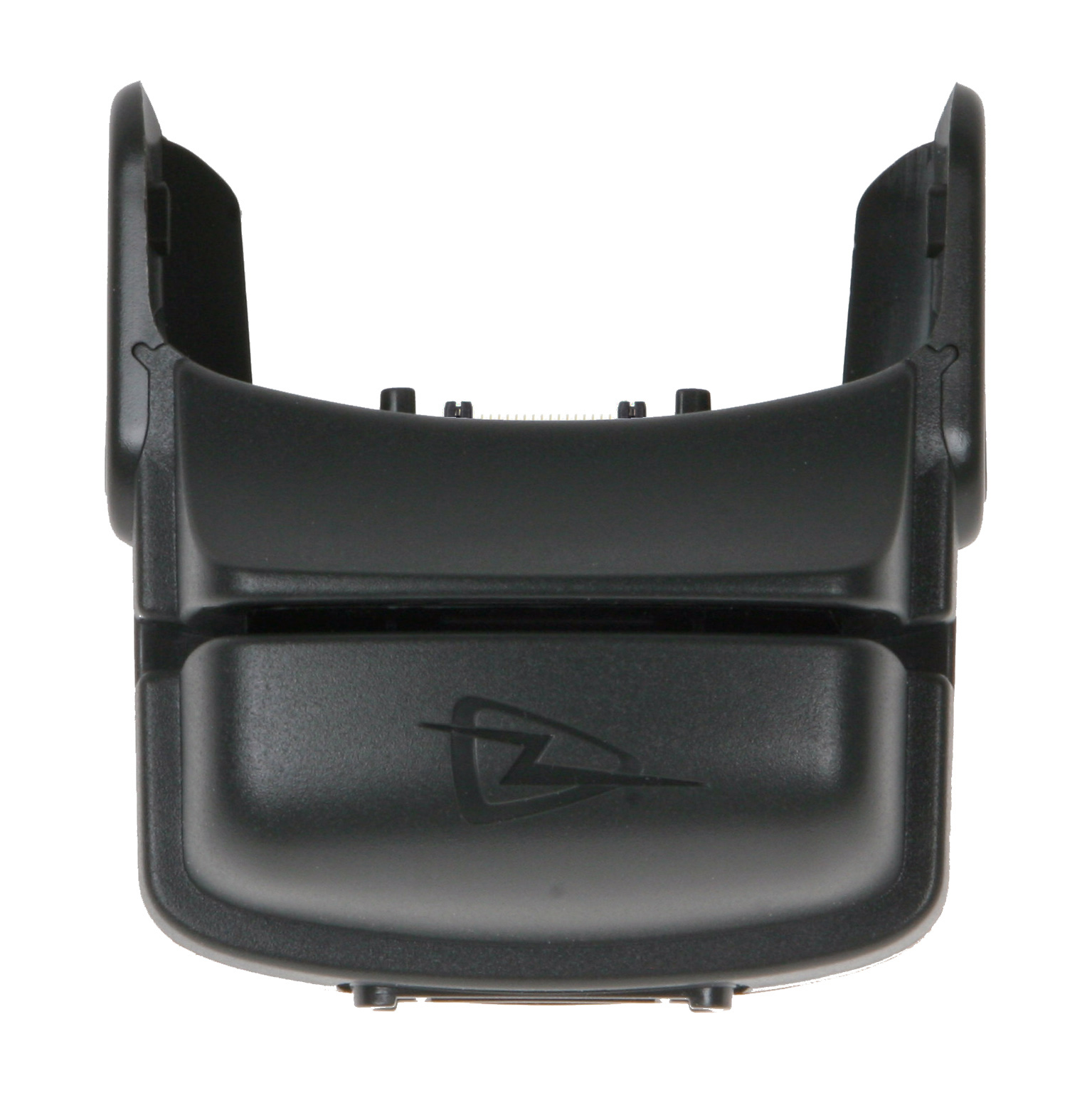

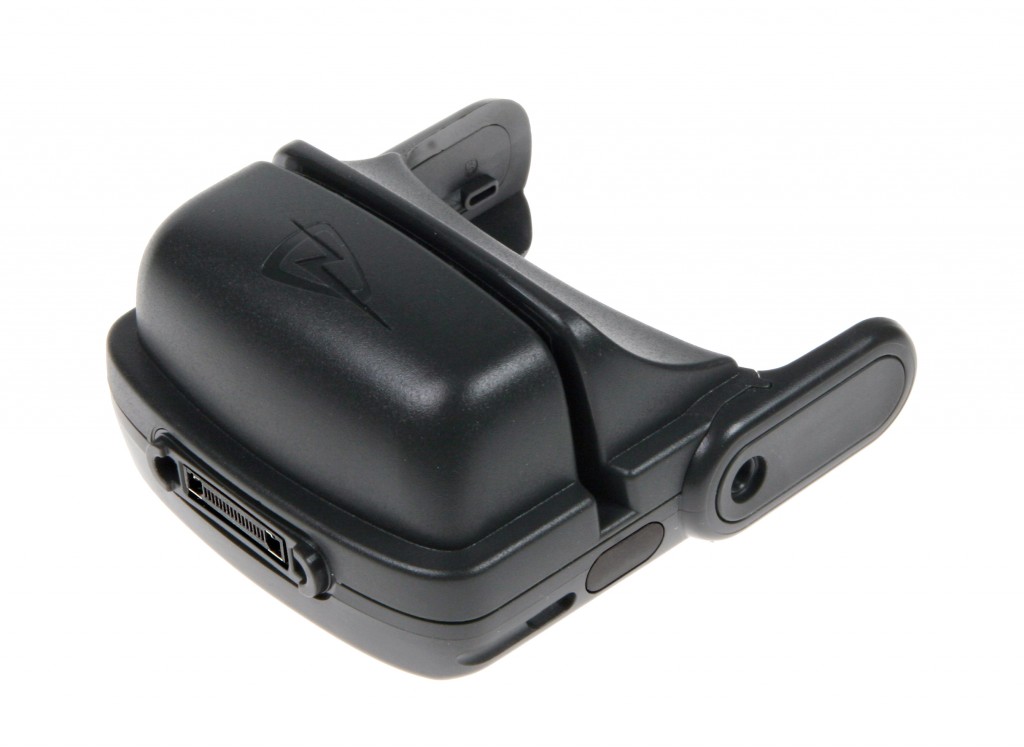

This compact snap on reader integrates an OCR-B swipe reader for the Machine Readable Zone (MRZ) of a passport with a contactless RFID reader to communicate with the embedded chip in ePassports. Functional with all variants of the Motorola MC70/75/75A, the reader can be used to provide an electronically generated passenger manifest.

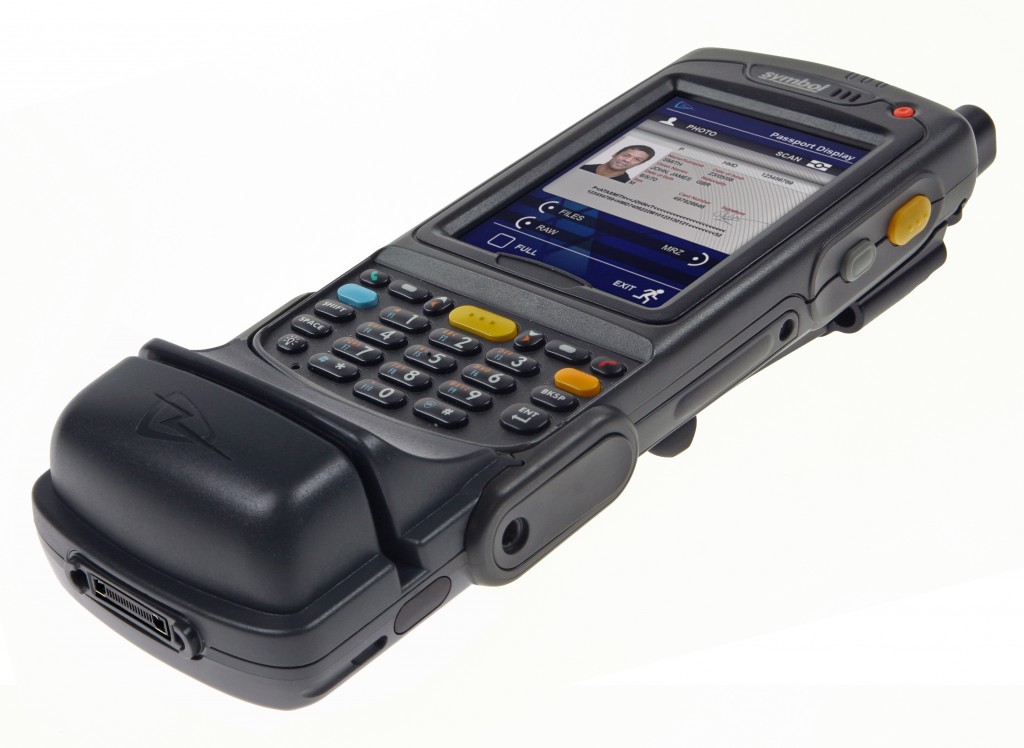

The small snap on device can be semi permanently attached to the Motorola MC70/75/75A whilst retaining compatibility with single slot charge cradles.
The contactless smartcard reader provides the ability to read and write to a wide variety of transponders at 13.56MHz compliant to ISO 15693, ISO 14443A, ISO 14443B and HID iClass®
Please Note: This is a semi-custom, built-to-order product – minimum order quantities apply. Please contact TSL to discuss your requirements.
Contactless Interface RF Transmit Frequency 13.56MHz Supported Contactless Cards
- ISO 15693
- ISO 14443A
- ISO 14443B
- Philips MIFARE®, DESFIRE®, MIFARE Prox®, SMART MX, ICODE®
Reading Distance Up to 4cm (tag dependent) OCR-B Reader Read Formats Machine readable passports (MRP), visas (MRV) and travel cards conforming to ICAO 9303, US Resident Alien cards, European National ID cards, APACS debit and credit documents, E13B and OCR-B fonts Direction of Read Bi-directional Physical Characteristics Dimensions 90 x 82 x 44mm (3.54″ x 3.23″ x 1.73″) Weight 105g Enclosure Material GE Lexan Polycarbonate Colour Grey Material finish Sparked Surface Mechanical Attachment Snap-On with optional locking screws Environmental Operating Temperature -10°C to +50°C (14°F to 122°F) Storage Temperature -40°C to +60°C (-40°F to 140°F) Humidity Up to 90% Relative humidity Non Condensing Construction RoHS compliant
1092-01-SO-EPQB – ePassport Queue Buster for Motorola MC70/75/75A
