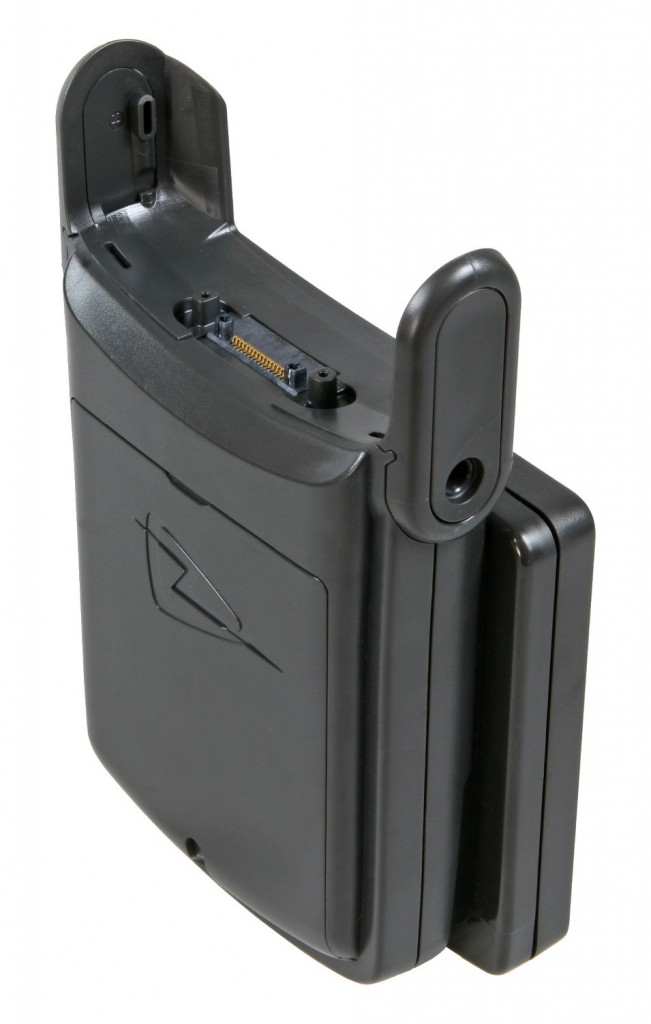

1101 UHF RFID reader for the Motorola MC70/75/75A

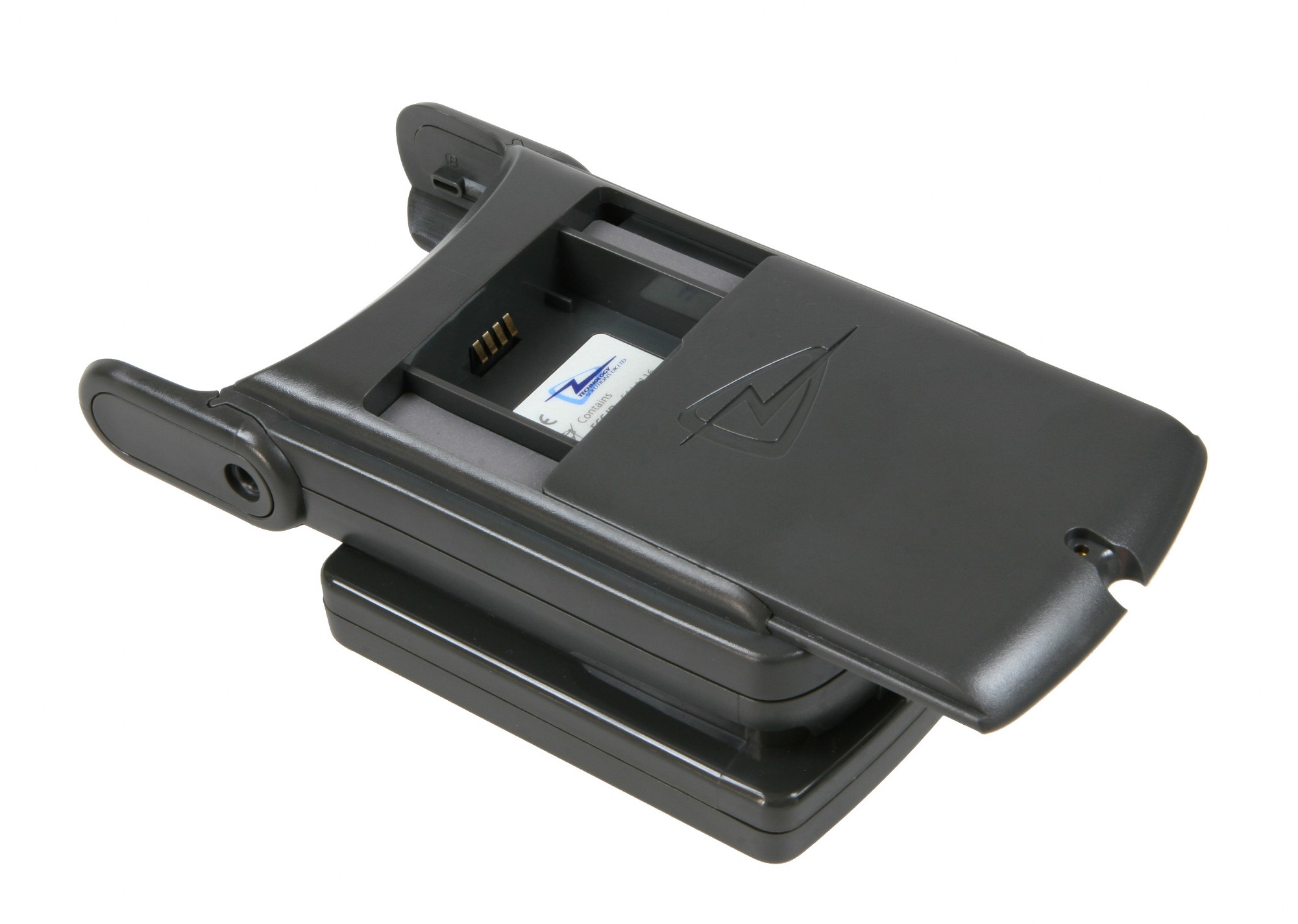

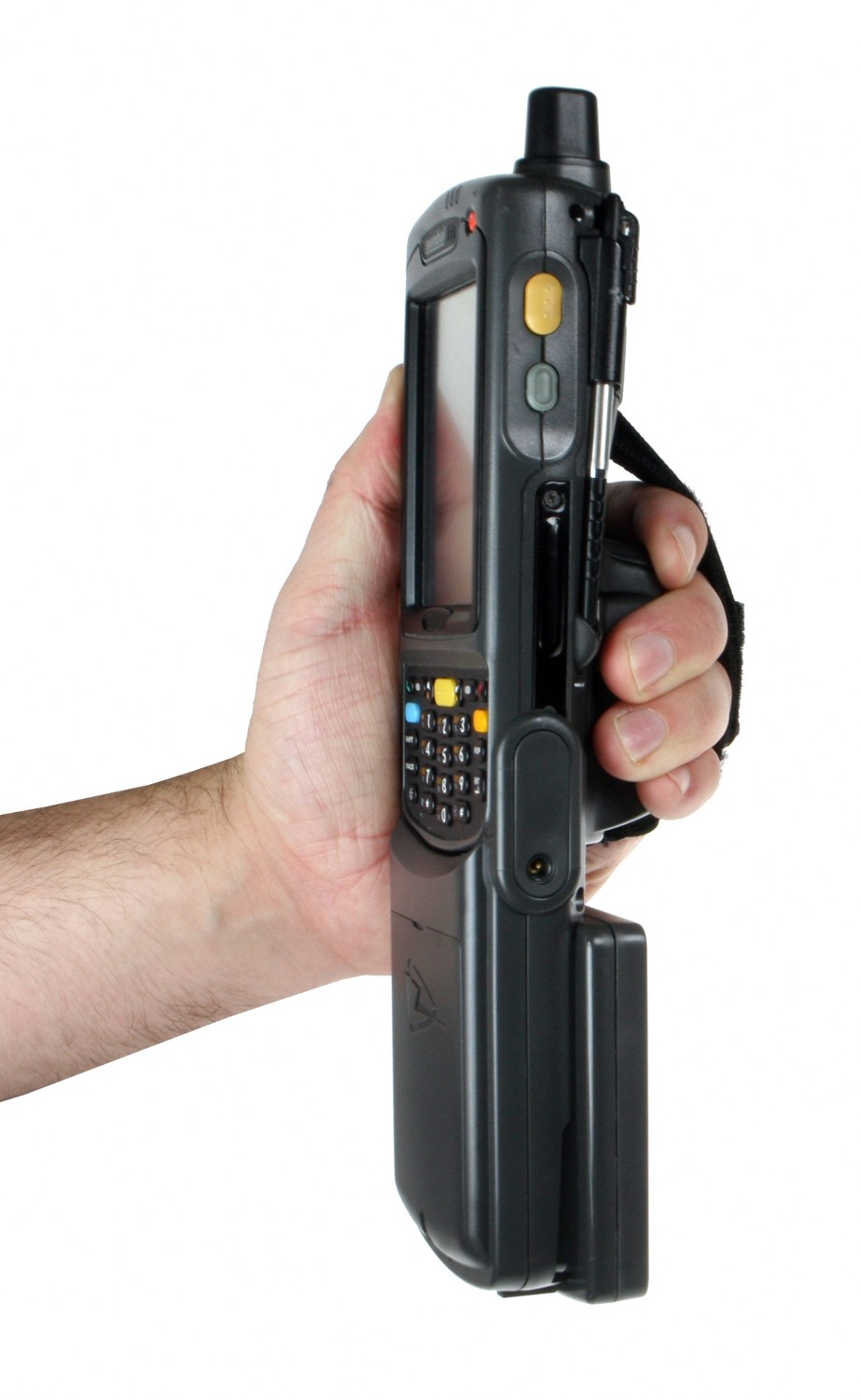

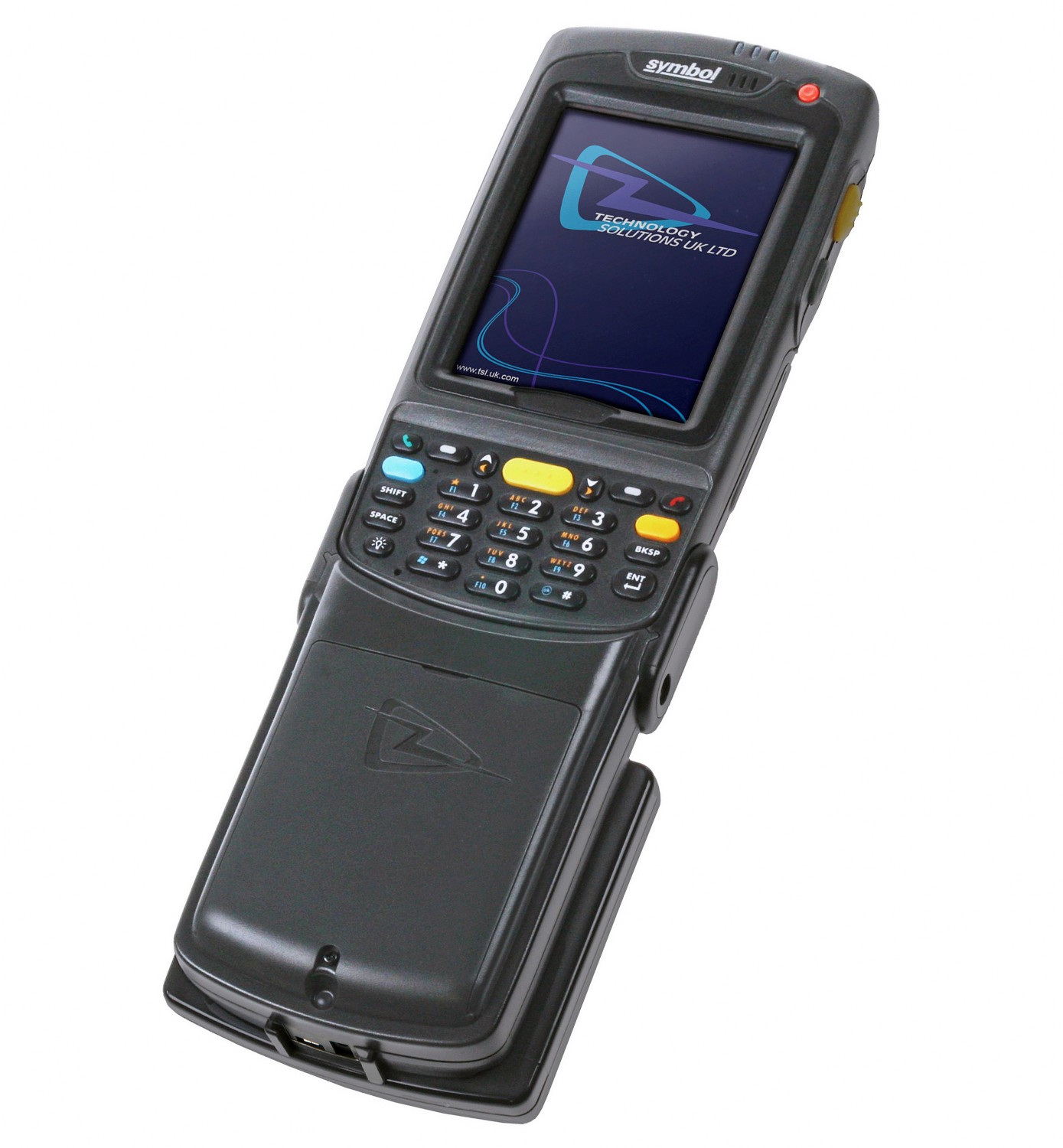

  • The reader upgrades the Motorola™ MC70, MC75 and MC75A terminals to provide the capability of reading and writing EPC Class 1 Generation 2 (ISO 18000-6C) transponders. The combination of the two devices provides a versatile mobile handheld UHF RFID reader solution. The reader snaps on to the bottom of the host terminal. A rechargeable battery is used in the reader to avoid reducing the run time of the host terminal. The reader battery and host terminal can be charged together giving a “one piece, one charge” solution. If necessary the battery can be swapped out in applications requiring continuous operation.

    The reader is suitable for operation in European (ETSI EN 302 208) and US (FCC Part 15) regulatory environments,  including Dense Reader Mode.

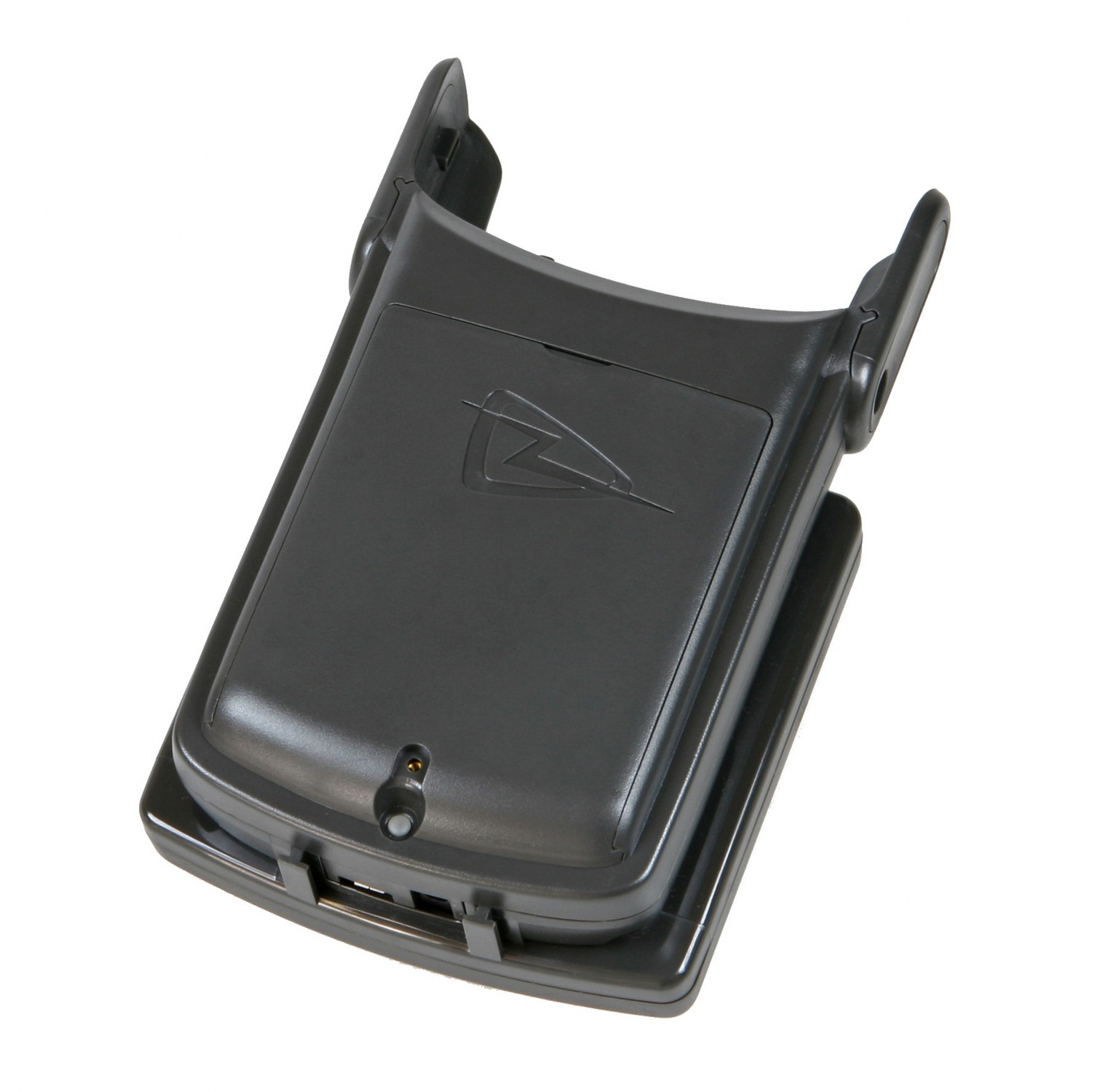

    The reader includes a circularly polarised antenna facing out of the rear side.

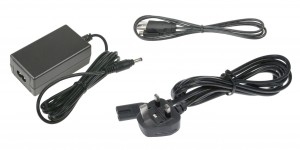

    Requires Motorola Power Supply PWRS-14000-249R and line cord for charging, and a Micro USB cable for synchronisation (can be purchased separately as the 1101 Accessory Pack)

  • UHF RFID reader


    Frequency 865 – 868 MHz (ETSI version) 902 – 928 MHz (FCC version)
    RF Power 10 – 800 mW (10dBm to 29dBm) (software controlled)
    Antenna Circularly Polarised radiating from the back plane of the reader and host terminal.
    Read distance More than 2m (6 feet) (tag dependent)
    Supported UHF tags EPC Class 1 Generation 2 (ISO18000-6C)

    Physical Characteristics


    Dimensions (without host terminal) 87(w) × 135 max (l) × 42(d) – 3.43” x 5.31” x 1.65”
    Weight 295g (10.4 oz)
    Enclosure material GE Lexan Polycarbonate
    Colour Grey
    Material finish Sparked surface

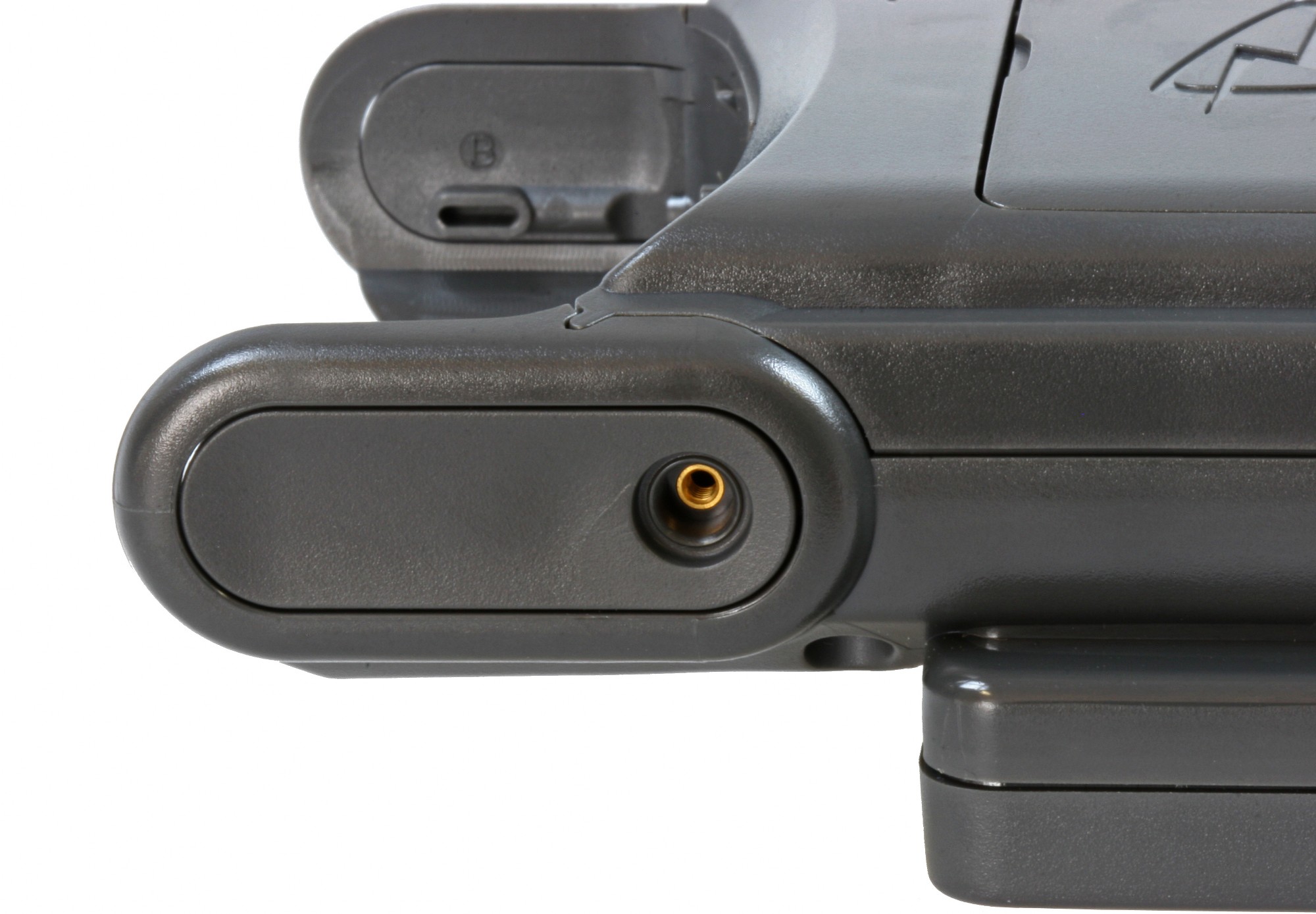

    Mechanical attachment to hand scanner Snap-on action with locking screws

    Environmental


    Operating Temperature -20°C to +60°C (-4°F to 140°F)
    Storage Temperature -40°C to +60°C (-40°F to 140°F)
    Humidity Up to 90% Relative humidity Non Condensing
    Drop specification 1.3m (4.26ft) to concrete, 6 drops per 6 sides over operating temperature
    Sealing Conformal coated electronics
    Electrostatic discharge +/-15kV air discharge, +/-8kV direct discharge
    Construction RoHS compliant

    Regulatory


    EMI/RFI EN 301 489-3 V1.4.1 EN 302 208 V1.3.1 FCC Rule Part 15.247 FCC Rule 15, Subpart B, Class B limits Industry Canada – Certified to Specification RSS-210
    Electrical Safety IEC 60950-1:2005 UL60950 Second Edition

  •  1101-01-SO-UHF – UHF RFID Reader for the Motorola MC70/75/75A (ETSI Variant)

    1101-02-SO-UHF – UHF RFID Reader for the Motorola MC70/75/75A (FCC Variant)
