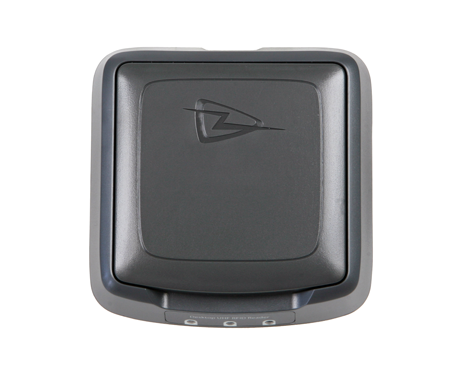

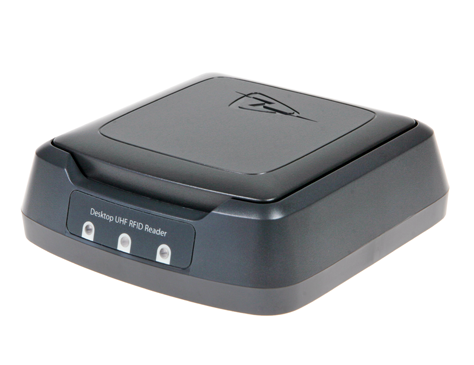

1126 Desktop UHF RFID Reader

**Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

This low profile desktop UHF RFID reader is designed to read and write to EPC Class 1 Generation 2 (ISO 18000-6C) UHF RFID transponders. It is powered by (and communicates via) a standard USB connection, providing a convenient device that can be hosted by any PC.

It is designed for operation in either European (ETSI EN 302 208) environments, including Dense Reader Mode Capability, or North American FCC environments.
The 1126 Desktop UHF RFID Reader with USB is ideal for Retail Point of Sale, document tracking and access control applications. An extensive software development kit (SDK) is available for development of customer applications.

Please Note: This is a semi-custom, built-to-order product – minimum order quantities apply. Please contact TSL to discuss your requirements.

[expand title=”Part Numbers” id=”part-numbers” tag=”div” trigclass=”toggle_title”]

1126 Desktop UHF RFID Reader

1126-01-DTR-UHF ETSI variant (Europe). Includes USB A to Mini B cable.

1126-02-DTR-UHF

FCC variant (North America). Includes USB A to Mini B cable.

[/expand]

Physical Characteristics
Dimensions:	110mm(w) × 110mm(l) × 35mm(d) (4.3” x 4.3” x 1.4”)
Weight:	175g (6.2 oz.)
Enclosure Material:	GE Lexan Polycarbonate
Colour:	Grey
Material finish:	Sparked Surface

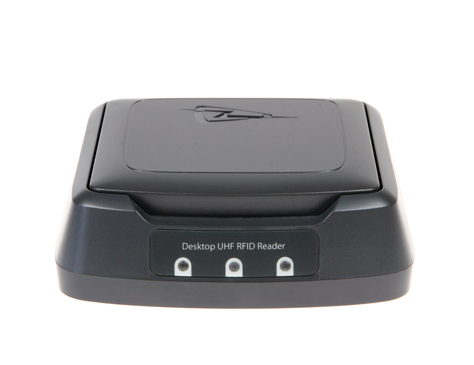

User Indication:	LEDs for ‘Power Good’ (orange), ‘Read OK’ (green), ‘communication’ (red). Buzzer.
Environmental
Operating Temperature	-20°C to +50°C (-4°F to 122°F)
Storage Temperature	-40°C to +60°C (-40°F to 140°F)
Humidity	Up to 90% Relative humidity Non Condensing
Drop Spec:	76.2cm (30 inch) drops to vinyl tiled concrete at room temperature.
Sealing:	TBA, conformal coated electronics
Electrostatic Discharge (ESD):	+/-12kV air discharge, +/-8kV direct discharge
Construction	RoHS compliant
UHF RFID Reader
Frequency:	865 – 868 MHz (ETSI version) 902 – 928 MHz (FCC version)
RF Power:	10 – 800 mW (software controlled)
Antenna:	Circularly Polarised
Read Distance:	Up to 1.5m (5 feet) – (tag dependent)
Connectivity

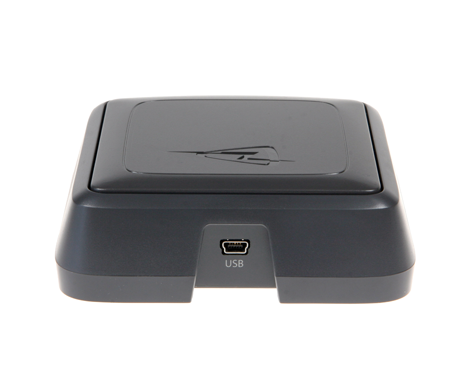

Power and data:	Mini USB B connector. Must be connected to a high power port on the host (500mA)
Drivers:	Virtual comm. port drivers available for Windows XP/Vista/7, Windows CE 4.2 and above, Linux and Mac OS8,9,X
Regulatory
Electrical Safety:	TBC
EMI/RFI:	TBC

**Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**
