1139 Smart Card Reader for Motorola MC91xx and MC90xx
**Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

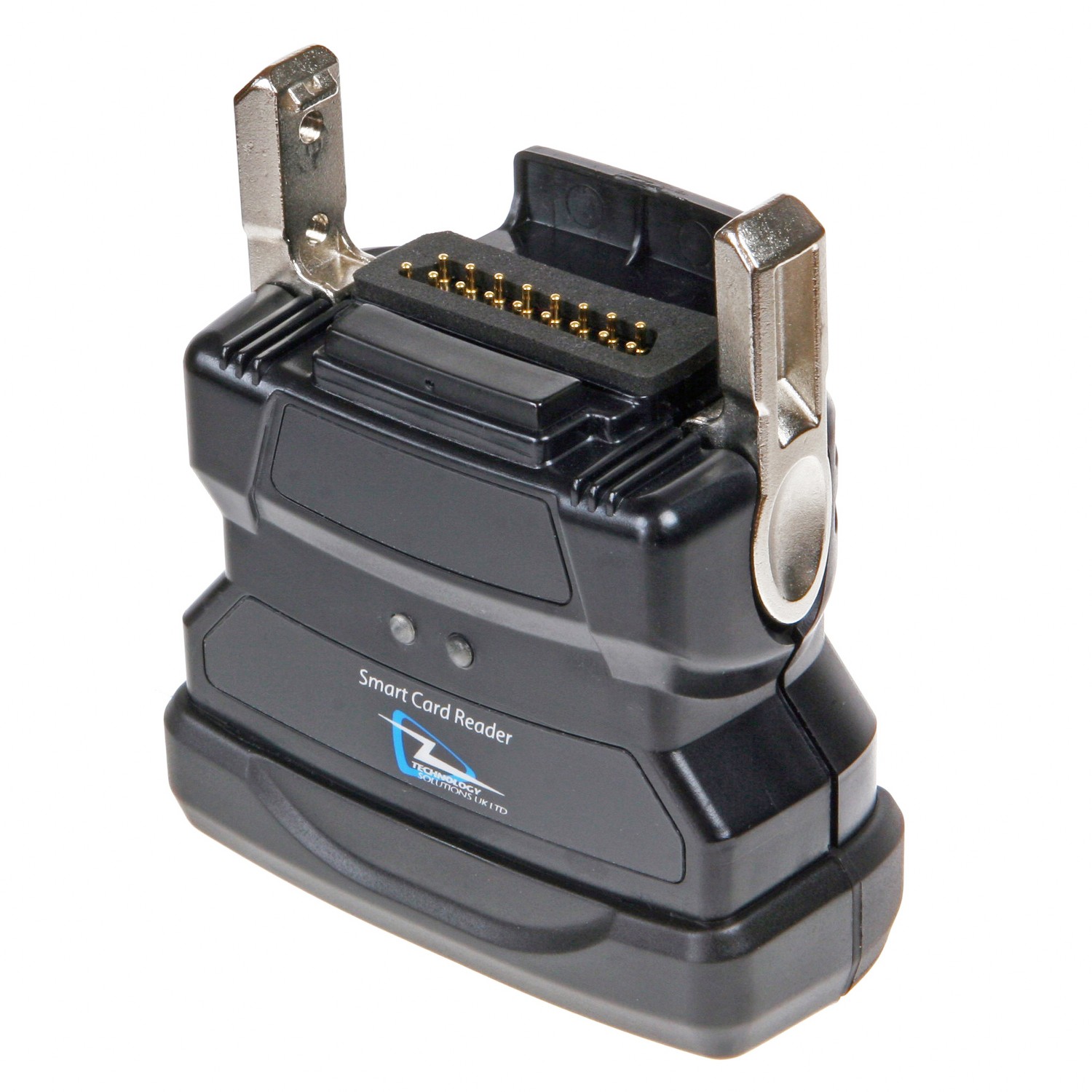

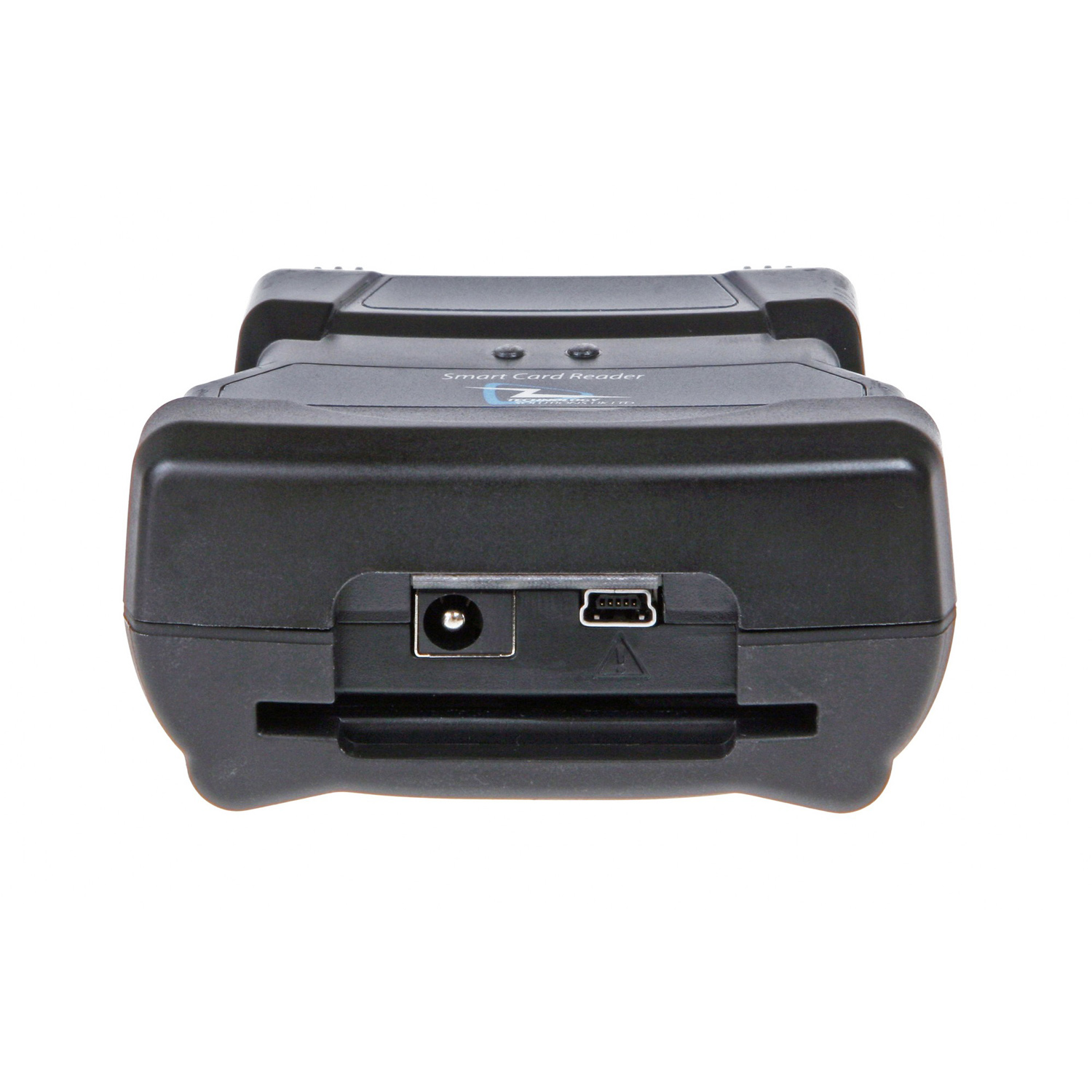

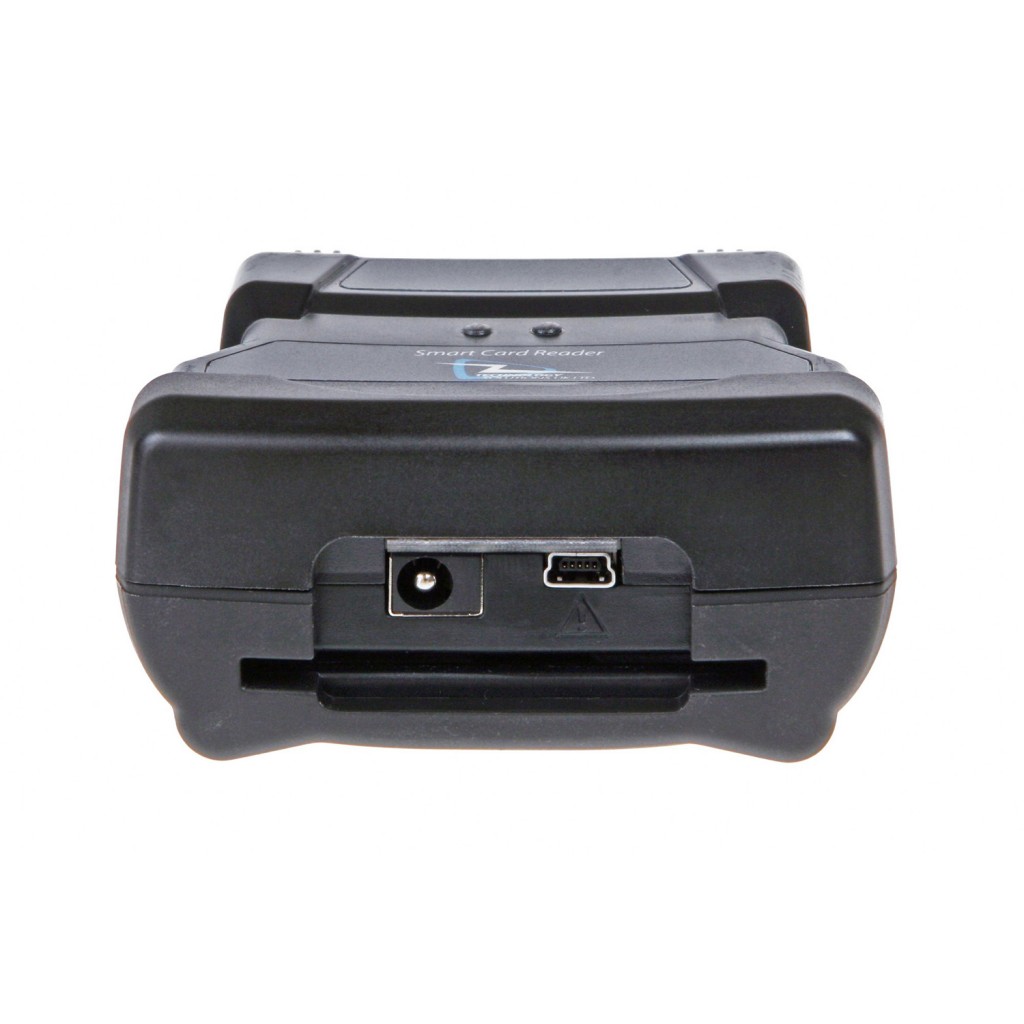

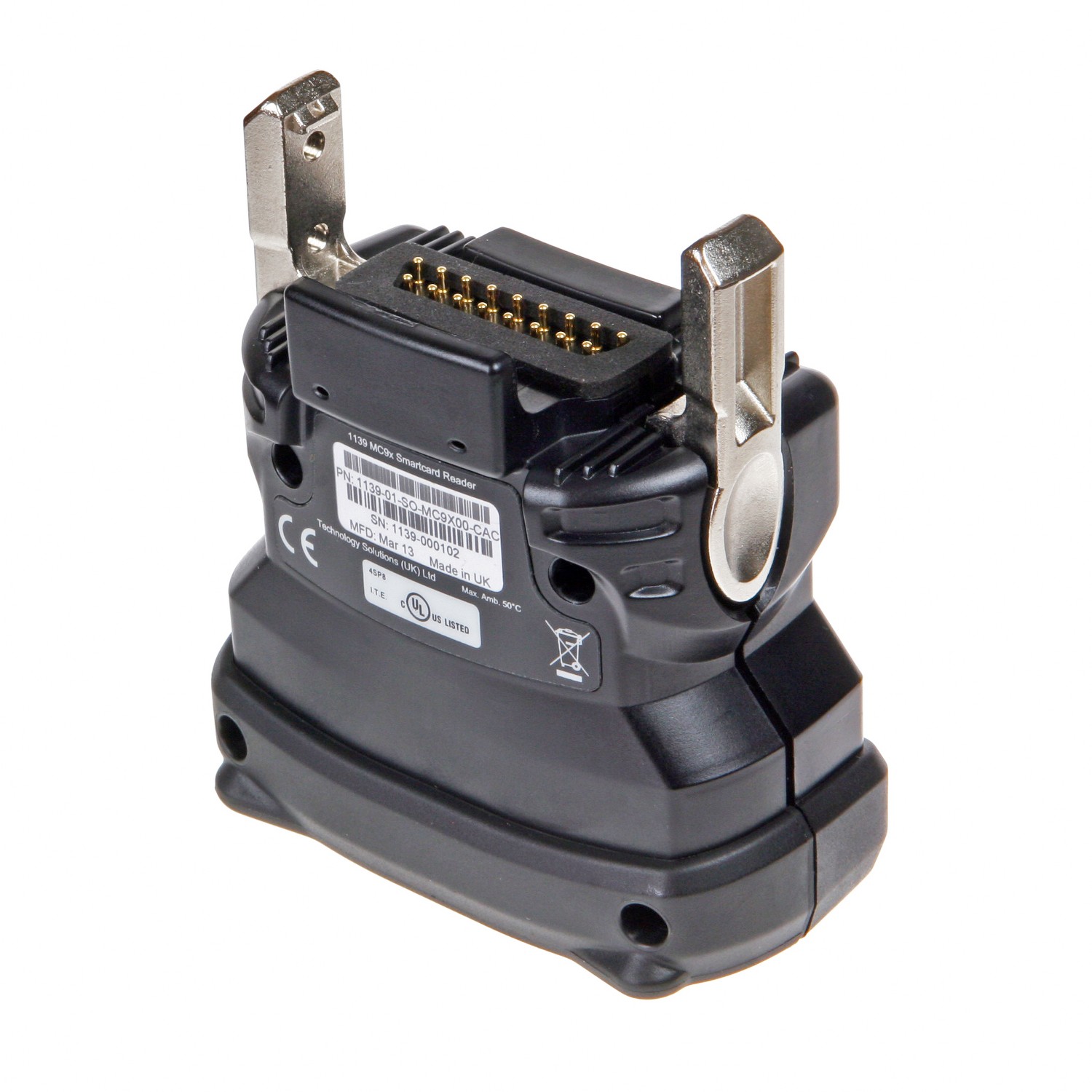

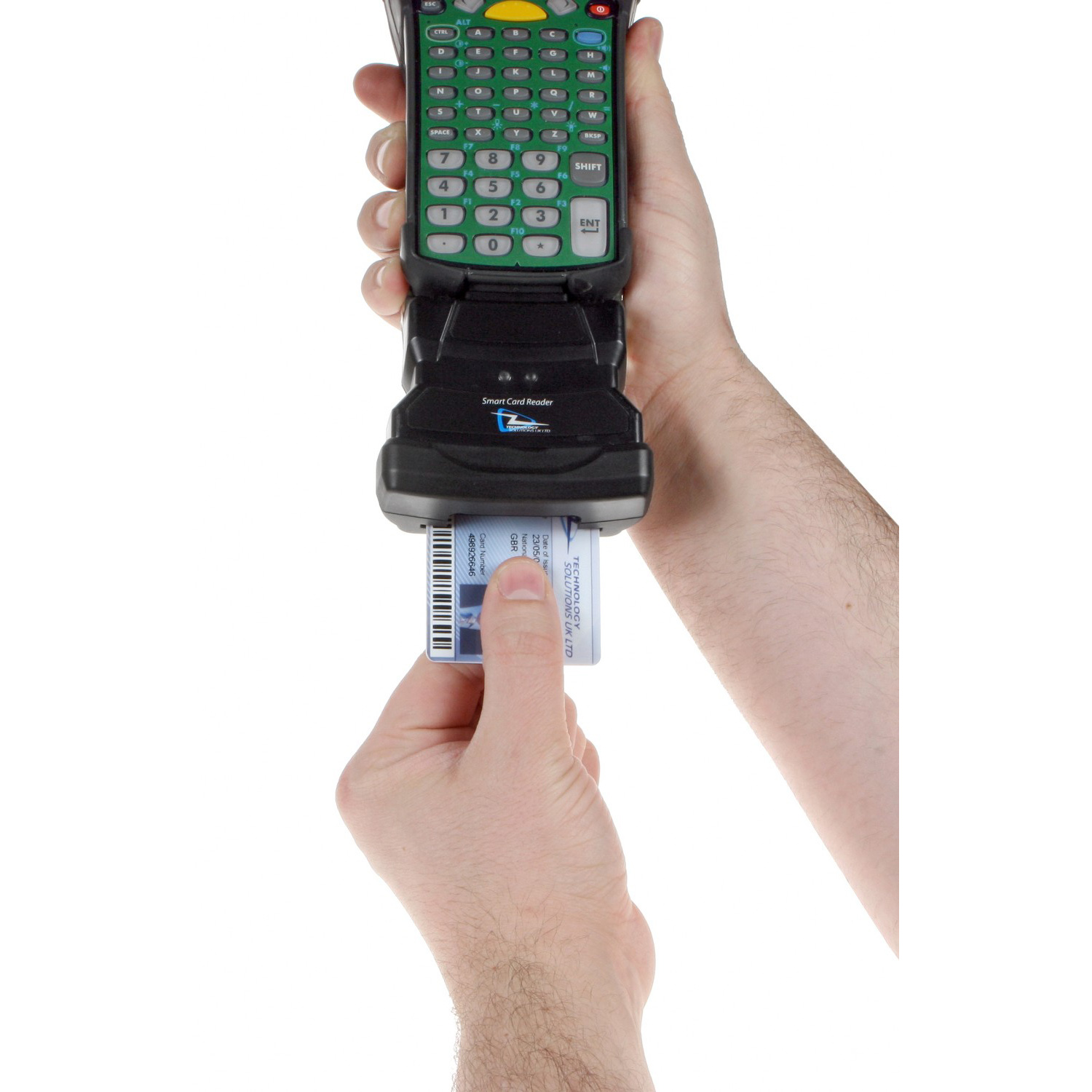

This accessory for the MC91xx and MC90xx series of terminals provides a Smart Card Reader capable of reading Common Access Cards (CAC) as well as Smart Cards compliant with ISO7816-1,2,3,4. The smartcard reader snaps on to the bottom of the terminal using standard quick release clips allowing operation with the full MC91XX and MC90XX range. A mini USB port on the bottom of the Smart Card reader provides ActiveSync connectivity whilst the DC input socket can be used with a standard Motorola power supply (Part Number 50-14000-148R, PWRS-14000-148R or PWRS-14000-148C) to charge the terminal. The smart card connector meets the requirements of ISO 7816-2 and is rated for a minimum of 500,000 insertion cycles. It uses landing contacts which touch the card only when it is almost fully inserted to minimize card and contact wear. It is suitable for ID-1 format cards as per ISO 7810.
Please Note: This is a semi-custom, built-to-order product – minimum order quantities apply. Please contact TSL to discuss your requirements.
Compliance – ISO7816-1,2,3,4 – T=0, T=1 Protocol – 2 wire (SLE 4432/42, S=10), 3 wire (SLE 4418/28, S=9) and I2C (S=8) also supported by reader hardware. Power source Host computer switched 3.3V output Current consumption Maximum 70mA supplying maximum smartcard current (Voltage Class A) Physical Characteristics
Dimensions 95 x 80 x 40 mm (including clips) Weight 155g User feedback Green LED indicates smartcard reader powered on Orange LED indicates smartcard being read. Environmental Characteristics
Operating temperature -20°C to +50°C Storage Temperature -40°C to +70°C Humidity 95% RH Non Condensing Enclosure material PC Enclosure IP rating Internal electronics IP 64 Regulatory
EMC EN 55022:2010, EN 55024:2010 USA – FCC Part 15 Class B Canada – ICES-003 Class B Ordinary Location Safety EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 UL 60950-1 CSA C22.2 No. 60950-1-07 + A1:2011, EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 Hazardous Locations Class I, II, III. Division 2 Groups A,B,C,D,F,G (only in combination with a terminal rated for Hazardous Location operation) – Due Q2 2013 **Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**
1139-01-SO-MC9X00-CAC – Smart Card Reader for Motorola MC91xx and MC90xx
