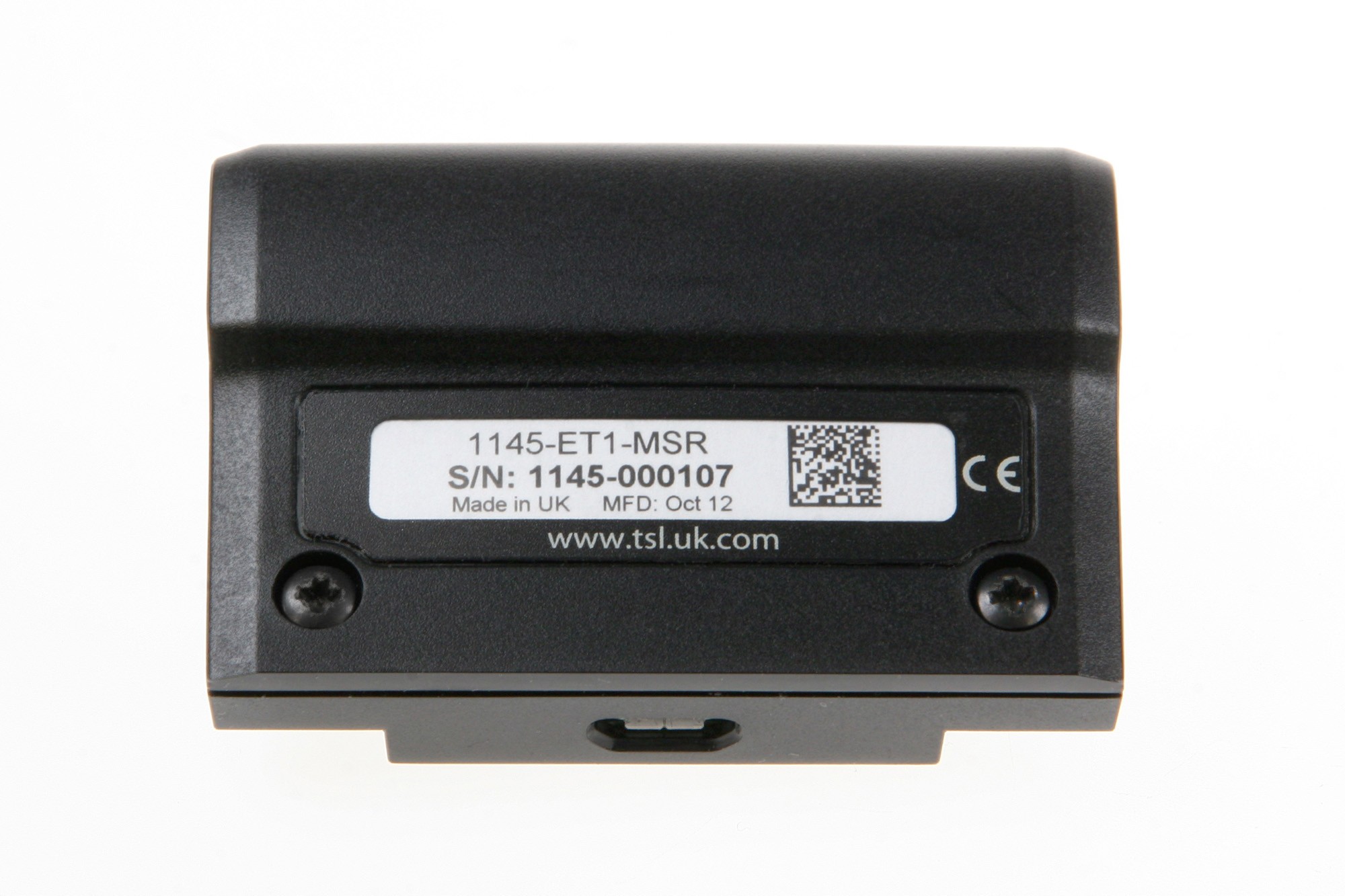

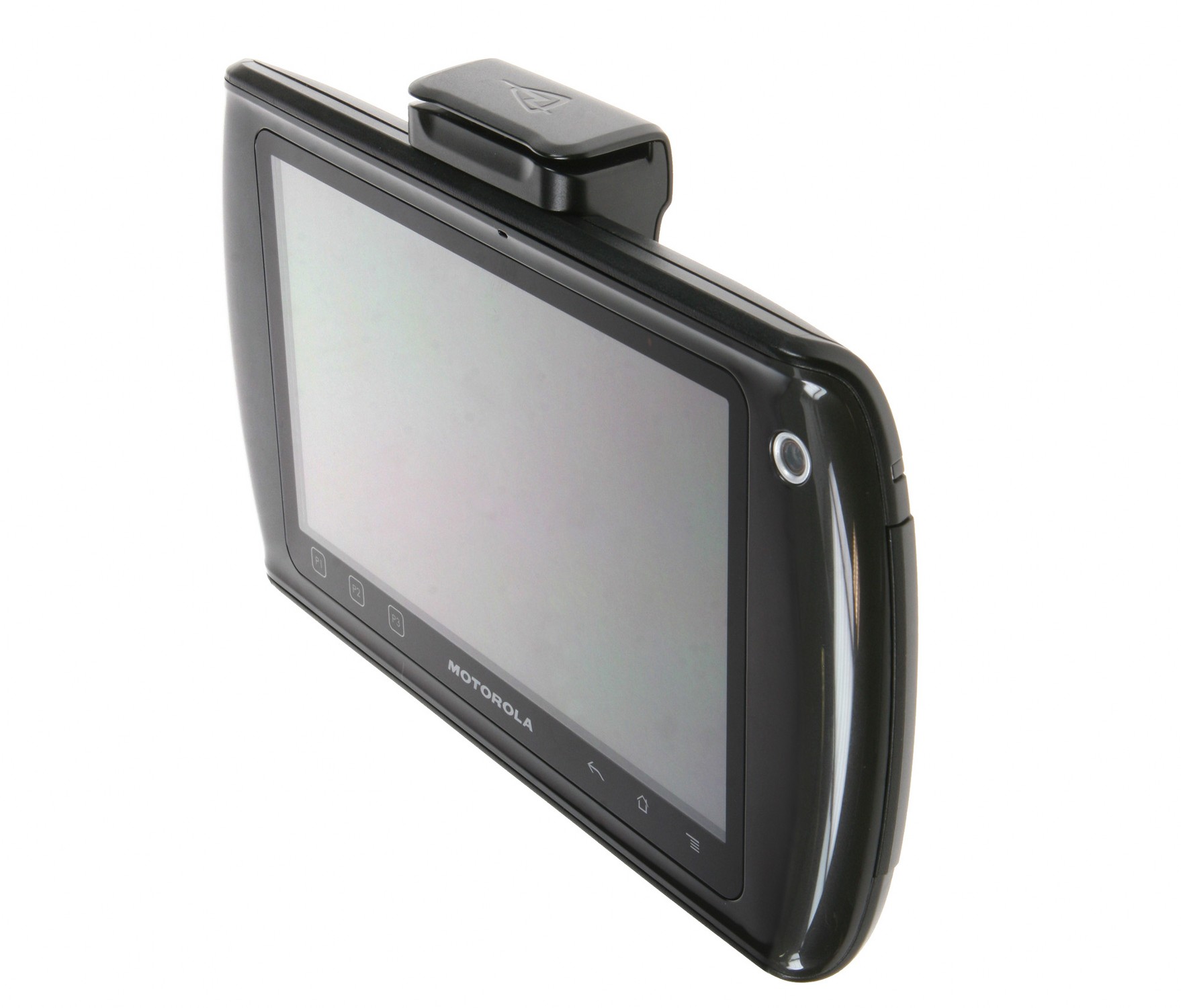

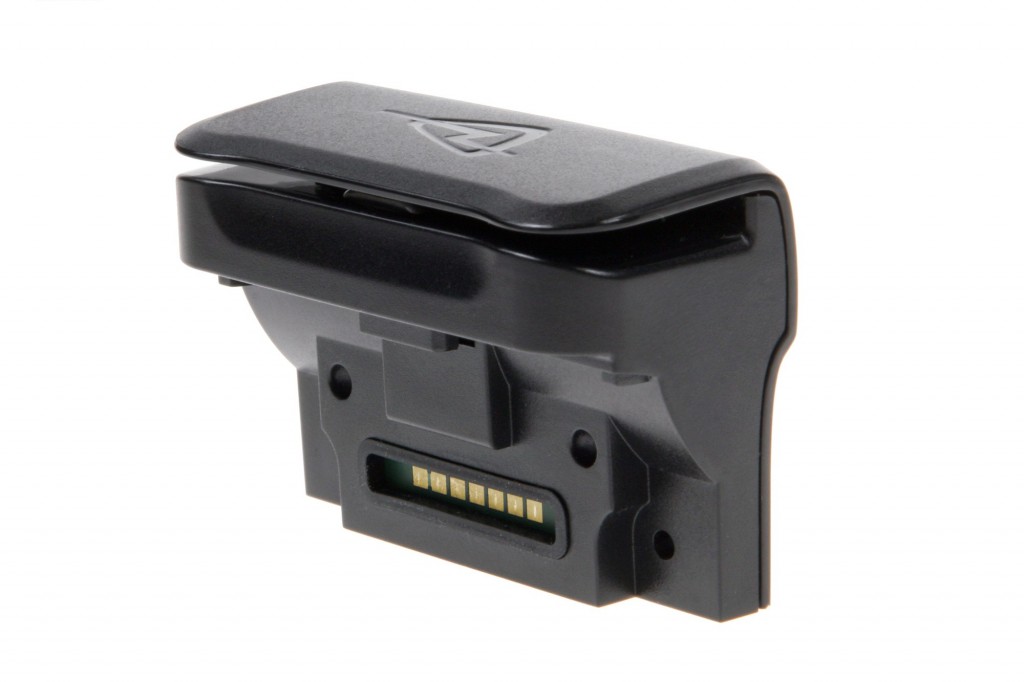

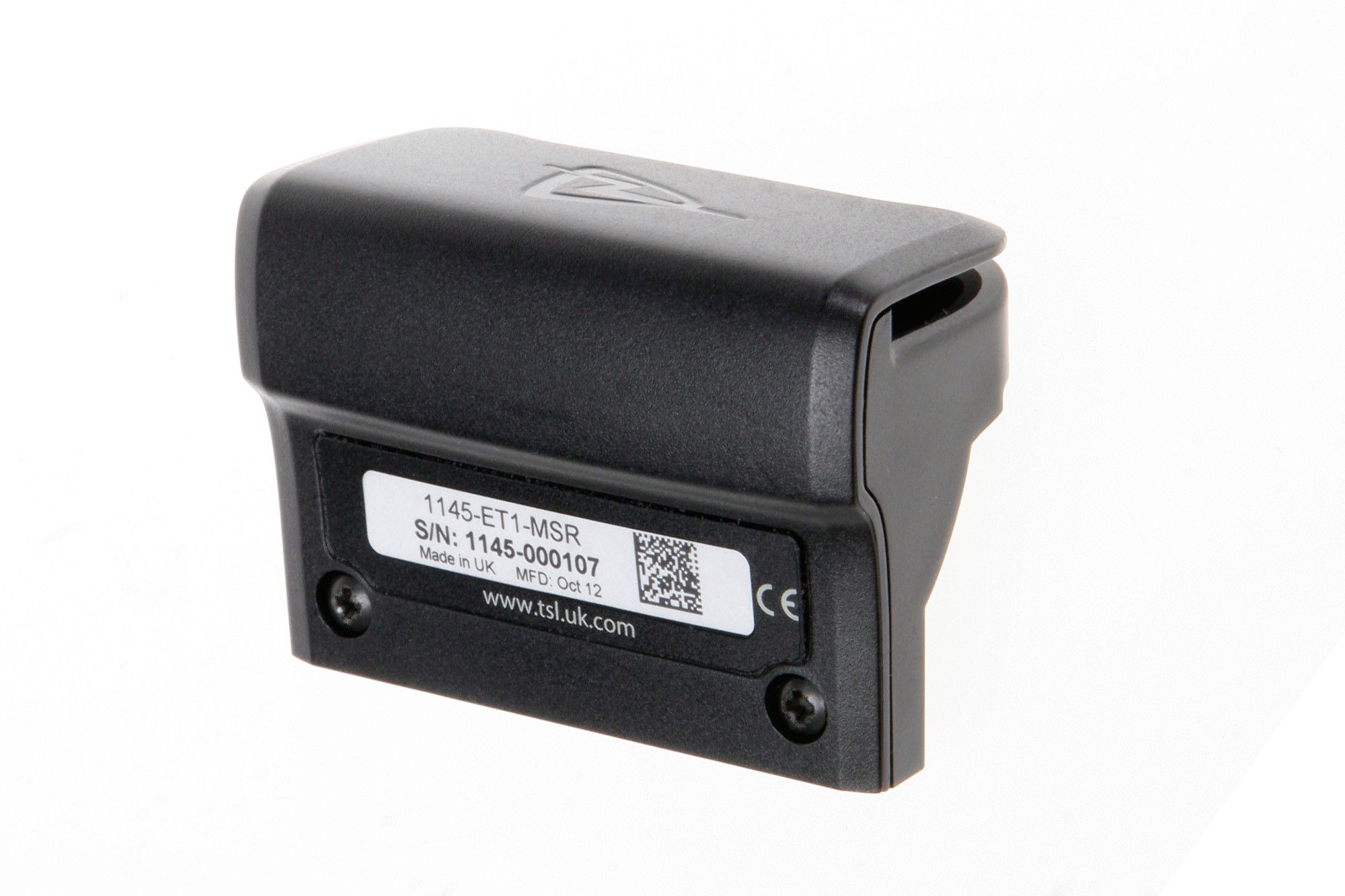

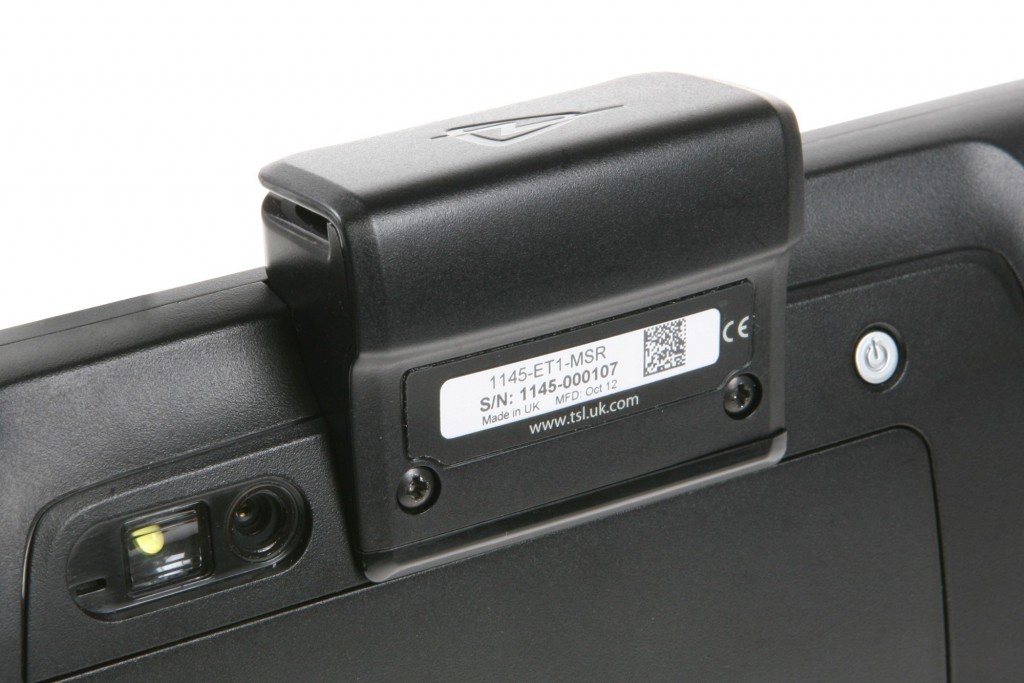

The 1145 Magnetic Swipe Reader is a small and lightweight peripheral that provides a 3 track Encrypted Magnetic Card Reader for the Motorola™ Enterprise (ET1) Tablet. It supports ANSI, ISO, AAMVA, CA DMV and user-configurable generic formats.
The built-in encryption engine supports DES, TDES, and AES encryption with DUKPT key management. The information is encrypted before leaving the read head, making this a perfect solution for applications requiring increased levels of security.
The reader is powered by the ET1 tablet, and remains compatible with existing ET1 accessories such as the hand strap.
Magnetic Card Reader
Format ANSI, ISO, AAMVA, CA DMV, user-configurable generic format Swipe Speed 127 to 1270 mm (5 to 50 in.) / sec, bi-directional Decoders Generic, Raw Data Track Reading Capabilities Tracks 1 and 3: 210 bpi
Track 2: 75 and 210 bpi, autodetect
Connection Through ET1 USB host port for power and communication Security Built-in encryption engine
DES, Triple DES and AES Encryption
DUKPT key management
In-head electronics to prevent tampering

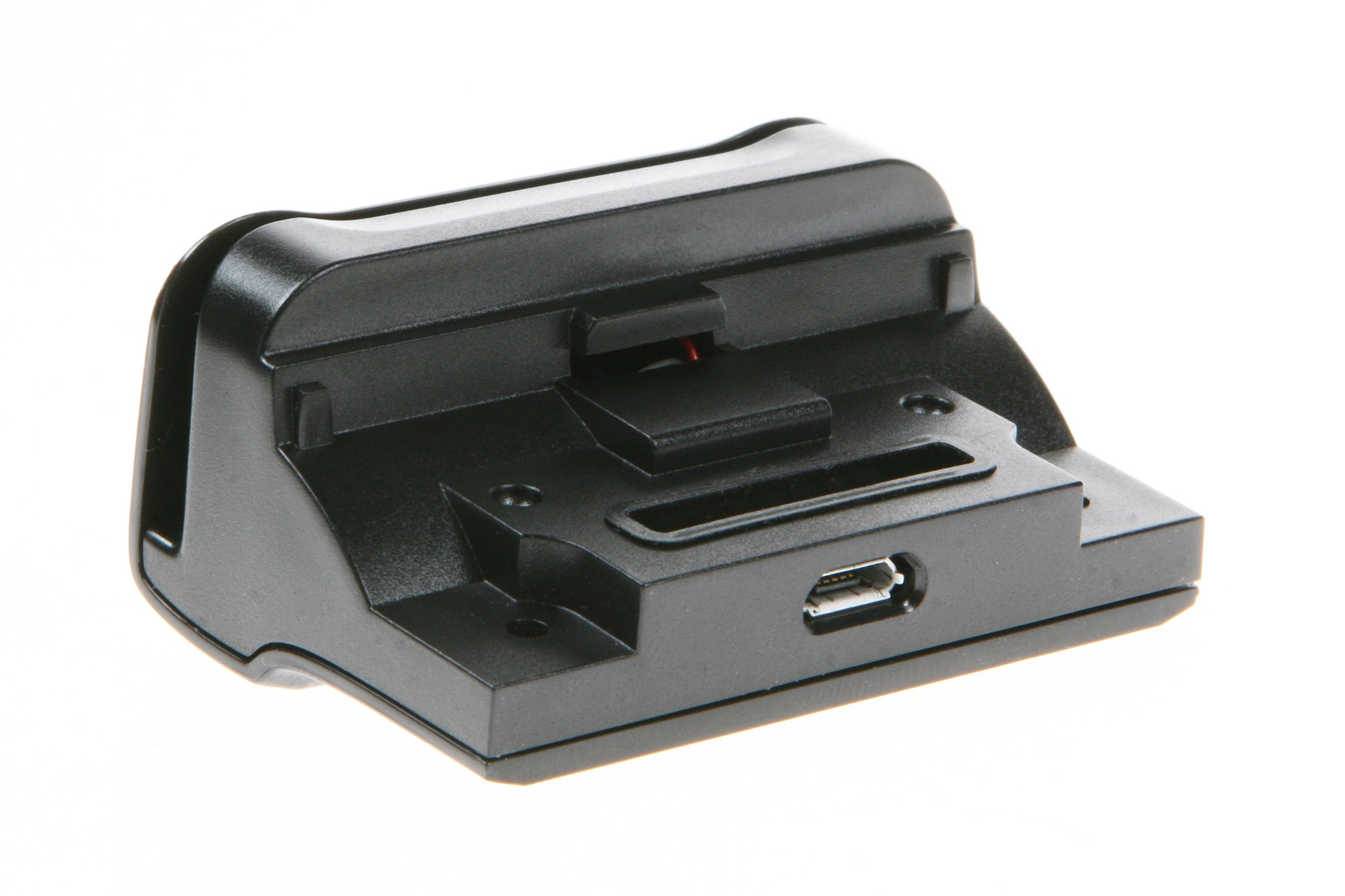

Dimensions 56.7(W) x 39.3(L) x 27.0(H) mm Weight 1oz (28g) Enclosure material Generic, Raw Data Mechanical attachment Screw-on action Docking Attachment maintains dockability with Motorola docking cradle for charging and syncing
Operating Temperature 0°C to +50°C (32°F to 122°F) Storage Temperature -40°C to +70°C (-4°F to 158°F) Humidity Up to 85% Relative humidity Non Condensing Drop specification Multiple 4ft./1.2m drops to concrete Sealing IP54 when fitted to ET1 Electrostatic discharge +/-8kV air discharge, +/-4kV direct discharge RoHS Complies with Directive 2002/95/EC
EMI/RFI Title 47 of the CFR: 2010, Part 15 Subpart (b) – Unintentional Radiators, Class B limits.
ICES-003 Issue 5, Class B limits.
EN61000-4-3:2006 + A2:2010.
Electrical Safety IEC 60950-1:2005 (2nd Ed 2005: A1:2009)
UL 60950-1 (CAN C22.2 CSA 60950-1), 2nd Ed, A1:2011
CAN/CSA-C22 NO. 60950-1-07 (R2012)
1145-ET1-MSR – MSR Reader for the Motorola: ET1 Tablet
