1060 Smart Card Reader for Motorola MC70/75/75A

  • **Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

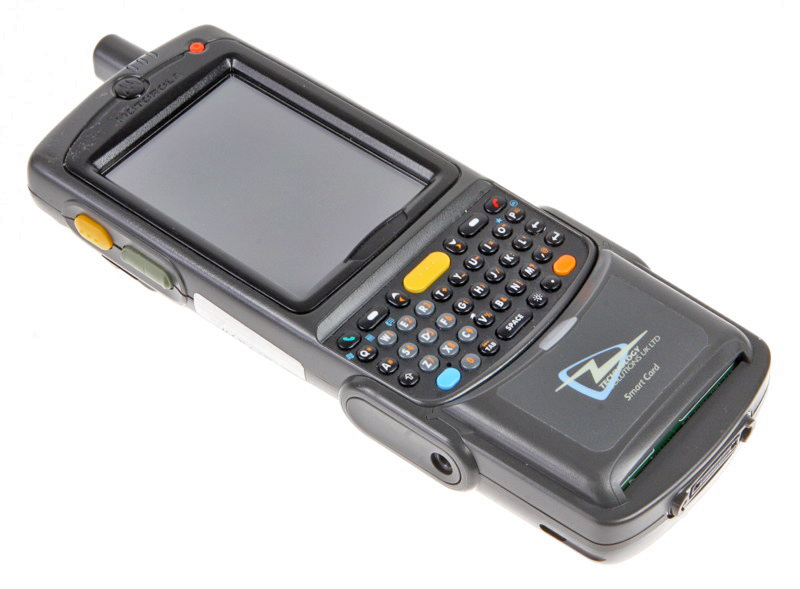

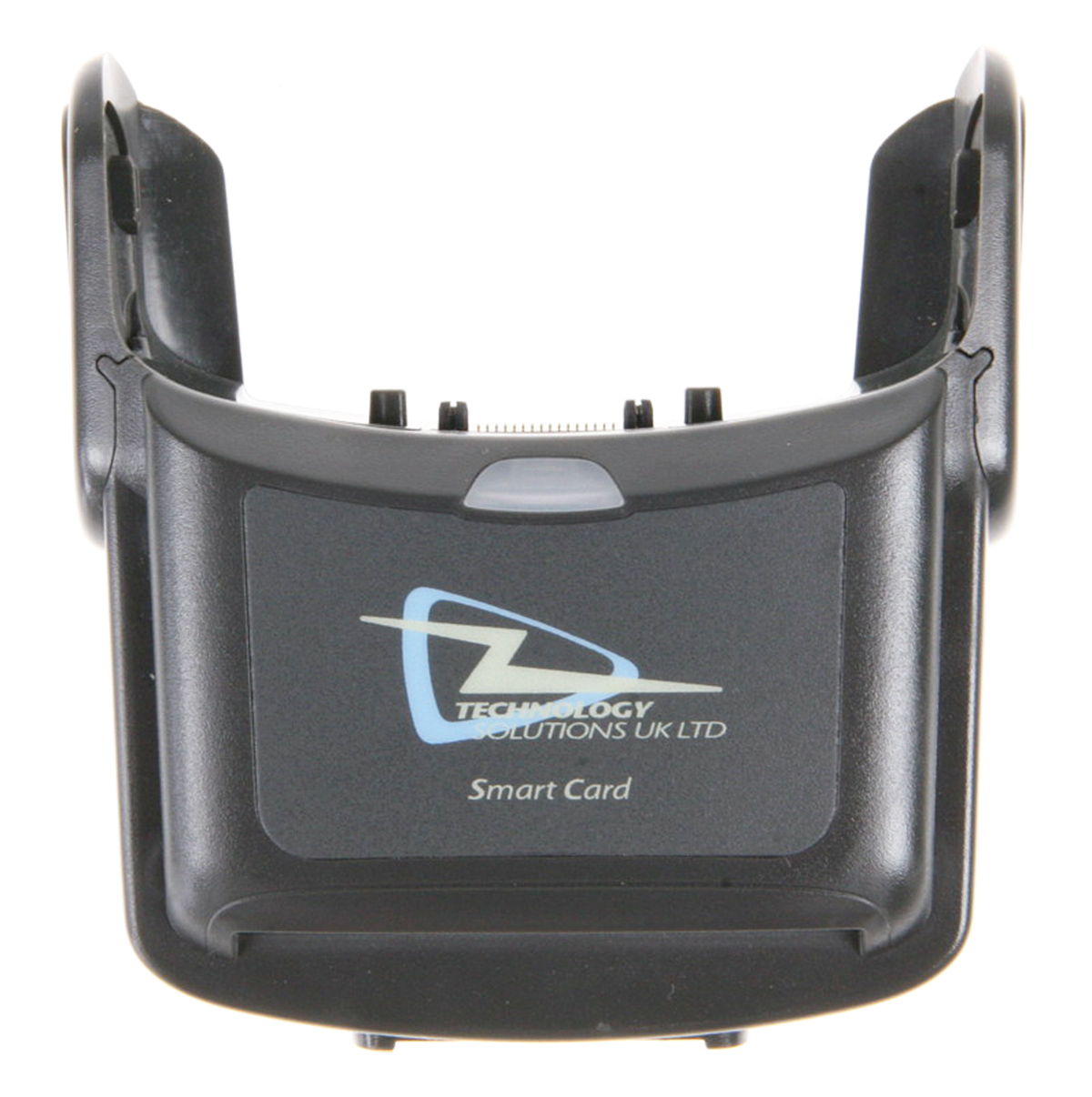

    This accessory for the Motorola MC70, MC75 and MC75A provides the mobile computer with the ability to read and write contact smartcards including the Common Access Card (CAC). The unit attaches as a snap on to the host mobile computer. The mechanical design of the unit allows it to be quickly and easily removed, alternatively two screws can be fitted to make the installation semi-permanent.

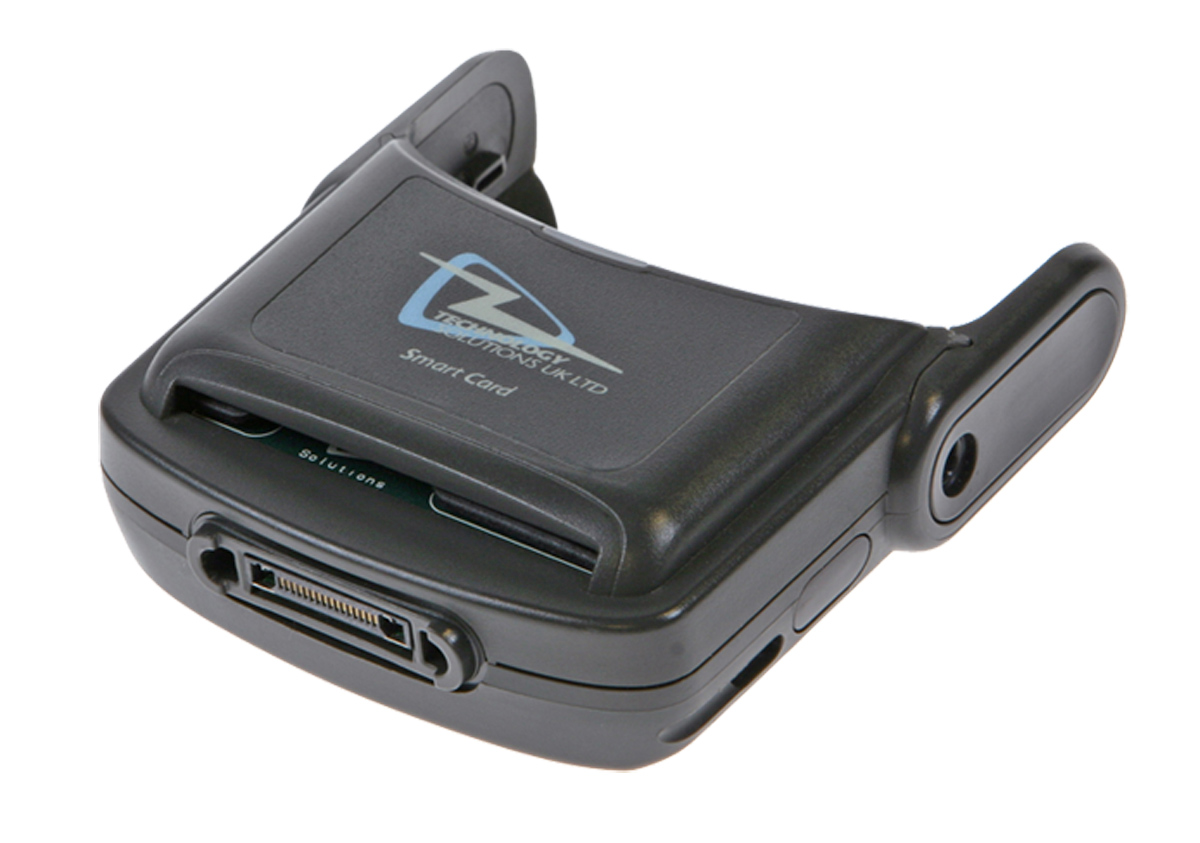

    The Smartcard reader retains compatibility with existing accessories such as the desktop cradle. USB and charge connections are passed through from the dock connector on the bottom to the host mobile computer for use without detaching the reader.

    The Smart Card Reader is compliant to ISO7816-1,2,3,4 and supports T=0 and T=1 protocols. A PC/SC compliant driver is provided. The reader is suitable for a wide range of applications across government, enterprise and financial sectors. The smart card connector meets the requirements of ISO 7816-2 and is rated for a minimum of 500 000 insertion cycles. It uses landing contacts which touch the card only when it is almost fully inserted to minimize card and contact wear.

  • Compliance –  ISO7816-1,2,3,4
    –  T=0, T=1 Protocol
    –  2 wire (SLE 4432/42, S=10), 3 wire (SLE 4418/28, S=9) and I2C (S=8) also supported by reader hardware.
    Power source MC70/75/75A switched 5V output
    Current consumption Typically 30mA, excluding smart card operating current.

    Physical Characteristics


    Dimensions 95 x 80 x 28 mm
    Weight 90g

    Environmental Characteristics


    Operating temperature -10°C to +50°C
    Storage Temperature -40°C to +70°C
    Humidity 95% RH Non Condensing
    Enclosure material PC

    Regulatory


    EMC EN 55022:2010, EN 55024:2010
    USA – FCC Part 15 Class B
    Canada – ICES-003 Class B
    Safety IEC 60950-1:2005 + A1:2010,
    EN 60950-1:2006 + A11:2009 + A1:2010 UL 60950-1:2007,
    CAN/CSA-C22.2 No. 60950-1-07

  • **Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

    1060-02-SO-MC75-CSC -Smart Card Reader for Motorola MC70/75/75A
