1157 Smart Card Reader for Motorola MC55/65/67

  • **Please note that this is an End of Life (EOL) product and only available by special order. Please contact TSL to discuss your requirements**

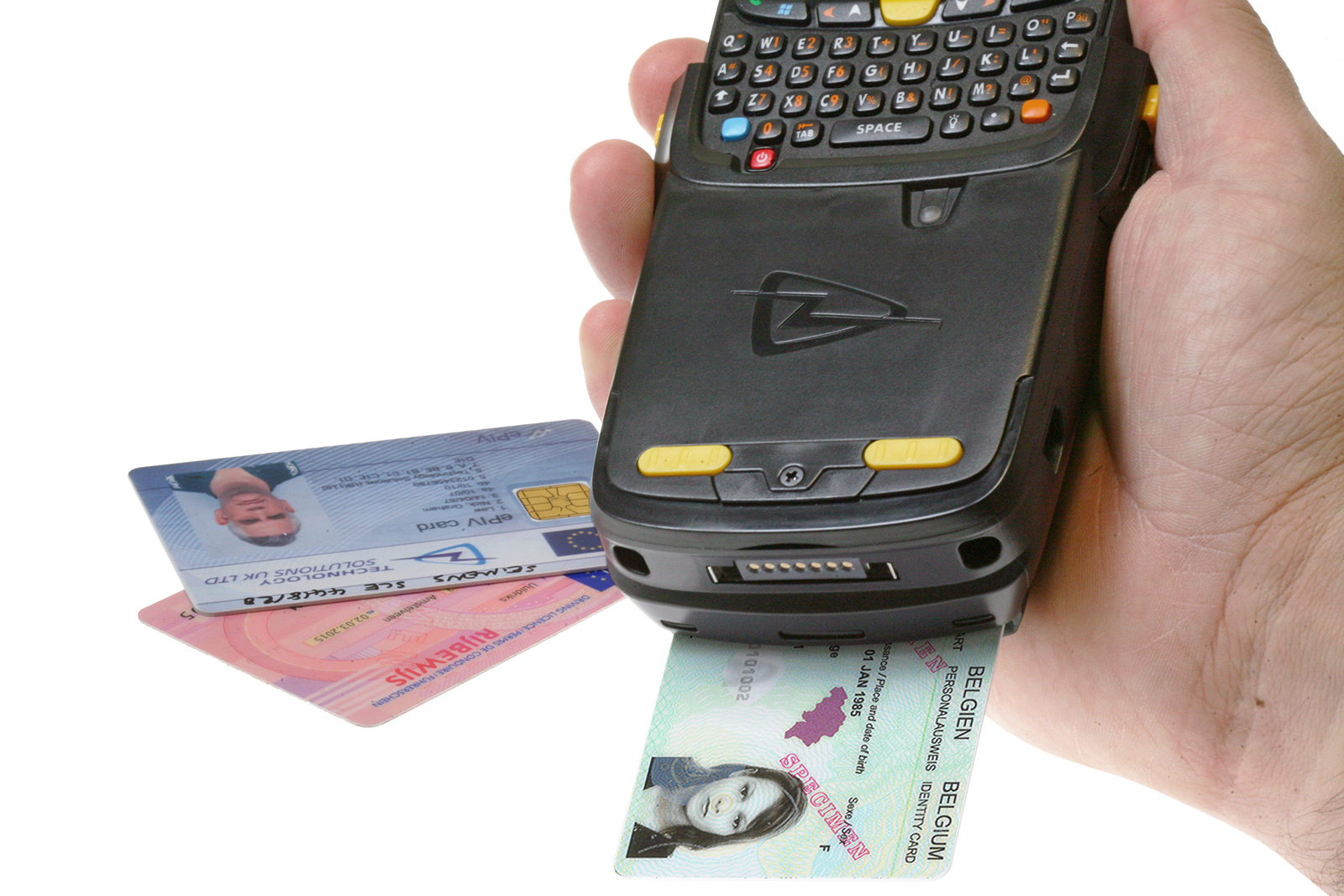

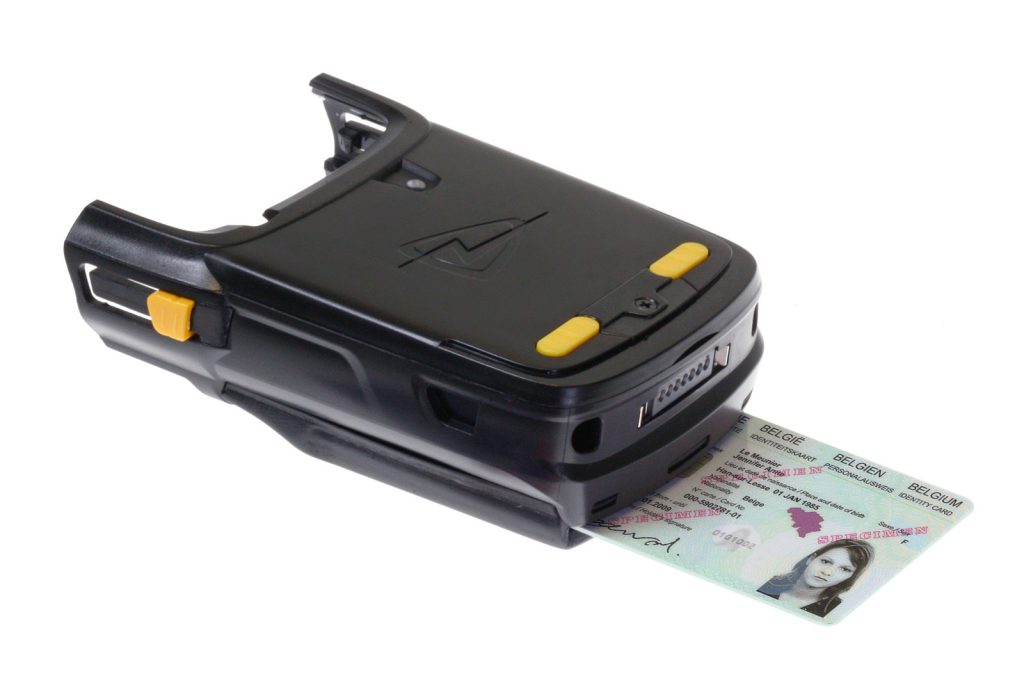

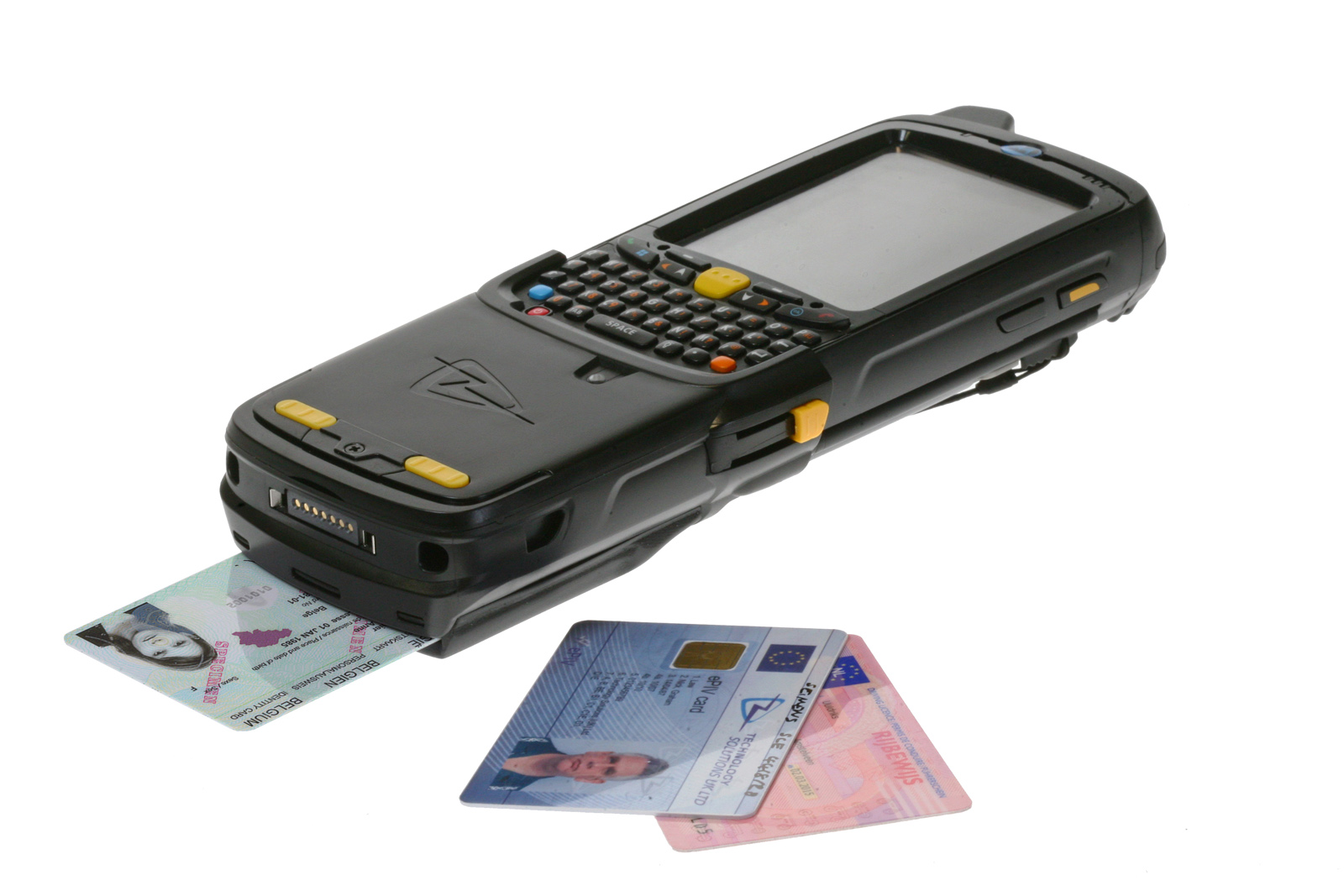

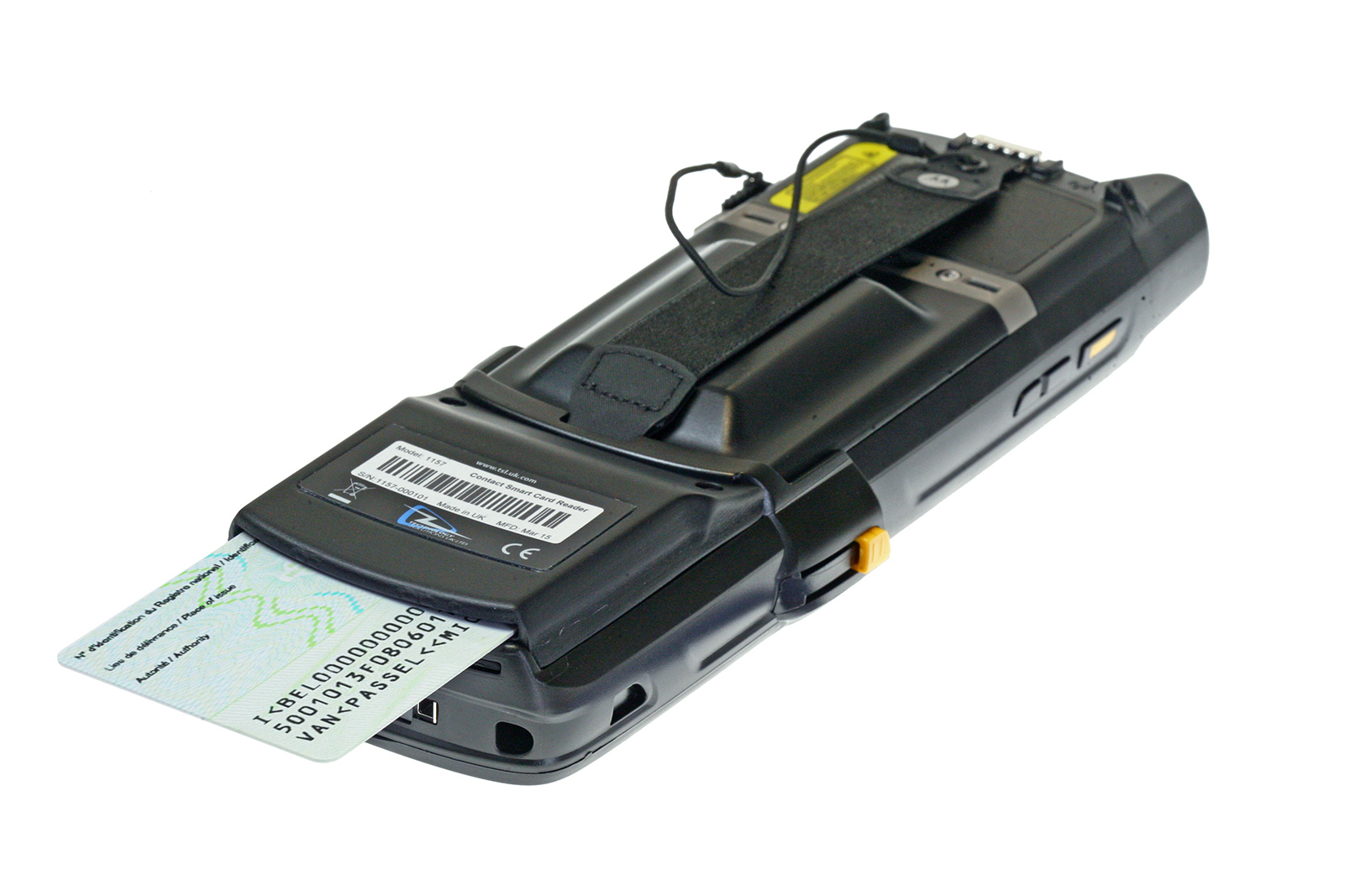

    This accessory for the MC55/65/67 series of terminals provides contact Smart Card functionality. The unit attaches as a snap on to the bottom of the terminal. The mechanical design of the module enables the attachment to remain compatible with existing MC55/65/67 accessories such as the desktop charge cradle.

    The USB port from the terminal is brought through to the docking connector on the bottom of the Smart Card snap-on to provide ActiveSync connectivity to the terminal. Charge is passed through to allow the host terminal to be charged without removing the cad reader.

    The Smart Card Reader is compliant to ISO7816-1,2,3,4 and supports T=0 and T=1 protocols. A PC/SC compliant driver is provided. The reader is suitable for a wide range of applications across government, enterprise and financial sectors.

    The smart card connector meets the requirements of ISO 7816-2 and is rated for a minimum of 500 000 insertion cycles. It uses landing contacts which touch the card only when it is almost fully inserted to minimize card and contact wear.

    Please Note: This is a semi-custom, built-to-order product – minimum order quantities apply.  Please contact TSL to discuss your requirements.

  • Physical Characteristics
    Dimensions 100mm × 88mm × 35mm
    Weight 108g
    Enclosure material: GE Lexan Polycarbonate
    Colour: Black
    Material finish: Sparked surface

    Contact Smart Card Reader
    Compliance ISO7816-1,2,3,4
    T=0, T=1 Protocol
    2 wire (SLE 4432/42, S=10), 3 wire (SLE 4418/28, S=9) and I2C (S=8) also supported by reader hardware
    Power source MC55/65/67 switched 5V output
    Current consumption Typically 35mA, excluding smart card operating current.
    Smart Card Clock Frequency Up to 8MHz
    Supported Card Types 5V, 3V and 1.8V Smart Cards ISO7816 Class A, AB and C
    Power to Smart Card 60mA

    Environmental Characteristics
    Operating temperature -10°C to +50°C
    Storage Temperature -40°C to +70°C
    Humidity Up to 95% Relative humidity Non Condensing

    Regulatory
    Electrical Safety: TBC
    EMC: TBC
    RoHS: 2011/65/EU (RoHS 2)
    Restriction of the use of certain Hazardous Substances in electrical and electronic equipment
    2015/863 (RoHS 3)
    Amendment to Annex II of 2011/65/EU
