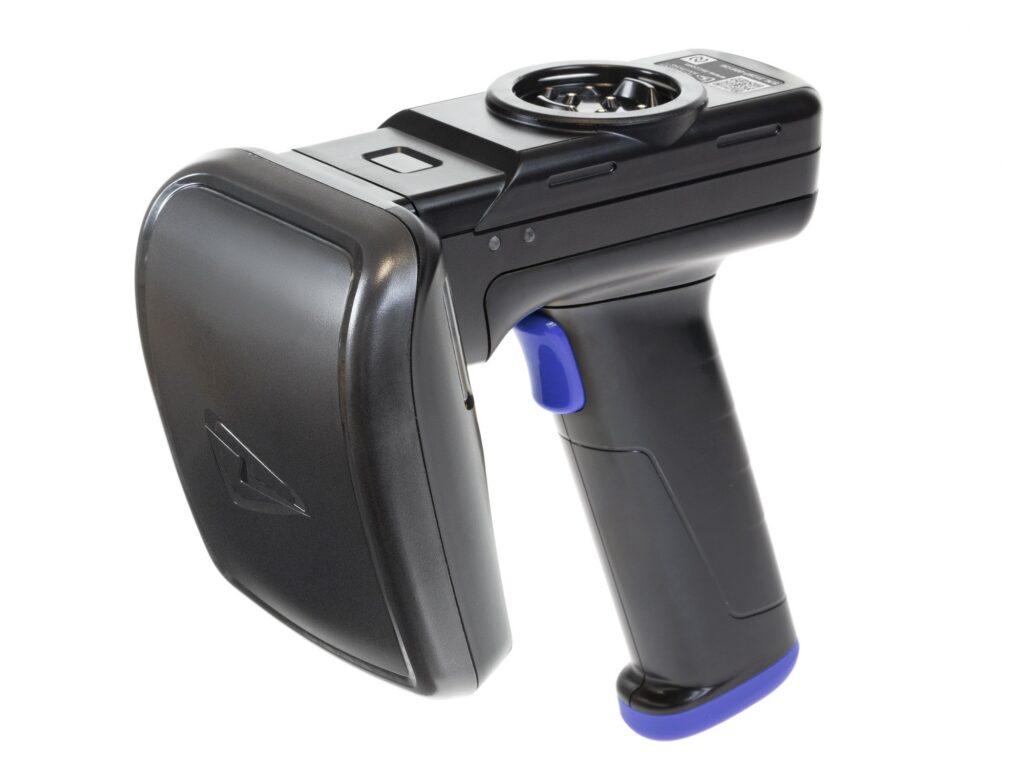

2128 Bluetooth® UHF RFID Reader with ePop-Loq®

  •   Made for iPod iPhone iPad

    Refined Design

    The 2128 UHF RFID Reader introduces the revolutionary TSL® ePop-Loq® connector. The ePop-Loq® system allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal.  The ePop-Loq® system is also designed to safely separate when the reader is subject to large impacts, such as when dropped.
    The 2128 UHF RFID Reader has flat landing contact pads, allowing for quicker docking and greater durability.

    Single Point Charge Solution

    The 2128 Docking Station allows charging of both the 2128 UHF RFID Reader and a smartphone or handheld terminal attached via an ePop-Loq® mount. The unique design can accommodate a variety of devices from multiple handheld and smartphone manufacturers. The 2128 Docking Station Kit is supplied separately and includes the docking station, power supply unit and a USB data cable.

    Enhanced RFID Performance

    The 2128 Bluetooth® UHF RFID Reader boasts improved levels of RFID read/write performance.
    Applications developed for the 1128, 1153 or 1166 UHF RFID Readers can easily be configured to work with the 2128, as all of these readers share TSL’s unique ‘ASCII 2 Protocol’. This sophisticated, parameterised set of commands carry out multiple actions locally within the reader. This approach enables multiple tag operations to be executed using simple pre-configured ASCII 2 commands which not only speeds integration of the reader into applications but also makes application development easier.

    Flexible Bluetooth® Connectivity

    The 2128 supports both Bluetooth® Classic as well as Bluetooth® Low Energy (BLE). The reader can be operated in Serial Port Profile (SPP) or Human Interface Device mode (HID), as well as supporting iApp2 for Apple iOS devices. The reader also supports an automatic re-connect mode for both Android and Apple devices.

    Ultra Secure Data Gathering Option

    As the ePop-Loq® system provides a wired connection between the host device and RFID Reader, sensitive data can be given that extra level of security by avoiding the use of wireless data transfer. The 2128 supports batch data collection and is equipped with a Micro SD socket and a real time clock. Up to 500 million transponder EPCs can be stored on a 32GB Micro SD card (separate purchase from alternative supplier). This provides the ability to collect and log data even if USB or Bluetooth® communication channels are not available. Docking the 2128 then enables this data to be synchronised with a PC.


  • Physical and Environmental Characteristics

    Dimensions (with trigger handle): 16.0 cm × 7.7 cm × 17.5 cm (LxWxH)
    Weight (including battery & trigger handle): 365 g / 12.8 oz (including non-imager antenna, battery & trigger handle)
    400 g / 14.1 oz (including imager antenna, battery & trigger handle)
    User input: Trigger button
    User feedback: Speaker, vibration motor, LED
    Power: Removable, rechargeable 3.7 volt 2300 mAh Lithium Polymer pack, 8.6 Watt hrs
    Power Handle (optional): 6700 mAh Lithium Polymer pack, 27 Watt hrs
    Enclosure materials: Polycarbonate

    Performance Characteristics

    RFID Engine: TSL® custom module with embedded Impinj R2000
    Communication protocols: TSL® ASCII 2.0 parameterised command set and Impinj binary protocol.
    Memory: Optional Micro SD card (maximum 32GB capacity supported). Up to 500 million date and time stamped EPCs can be stored on a 32GB Micro SD card (separate purchase from alternative supplier).
    Compatible Host devices (Bluetooth®): Any Bluetooth® Host1 supporting the Serial Port Profile (SPP) or Human Interface Device (HID) profile (Android, iOS, Linux, Mac, Windows). See  Bluetooth® Mode Comparison
    Compatible Host devices (USB): Any USB host with FTDI VCP driver support (Windows, Linux, Mac, Android).

    Environmental

    Operating Temperature: -10°C to 40°C (14°F to 104°F)
    Charging Temperature: 5°C to 40°C (41°F to 104°F)
    Storage Temperature: Less than 1 month at -20°C to +45°C (-4°F to 113°F)
    Less than 6 months at -20°C to +35°C (-4°F to 95°F)
    Humidity: 5% to 85% non-condensing
    Drop specification: Multiple drops to concrete: 4 ft./1.2 m ambient, 3ft / 0.9m across the operating temperature range
    Tumble: 500 0.5 metre tumbles at room temperature (1,000 cycles)
    Environmental Sealing: IP54
    Electrostatic Discharge: ± 15kVdc air discharge; ± 8kVdc contact discharge
    MIL-STD 810F: Meets and exceeds applicable MIL-STD 810F for drop, tumble and sealing

    RFID Performance

    Standards supported: EPC Class 1 Gen 2
    Nominal read range2: Up to 6 m (19.6 ft).
    Nominal write range2: Up to 3 m (9.8 ft).
    Field: 150-degree forward facing
    Antenna: Detachable, Right Hand Circularly Polarized with optional 2D scanner.
    Frequency Range: EU: 865-868 MHz; US: 902-928 MHz
    Maximum Output Power: 33 dBm EIRP3

    Barcode Scanning

    Imager: Motorola SE4500 2D imager
    Sensor Resolution: 752 x 480 pixels
    Field of View: Horizontal: 40°, Vertical: 25°
    Focal Distance: 8 in (203 mm).
    Aiming LED (VLD): 655 ±10nm Laser
    Illumination Element: 625 ±5nm LEDs (2x)
    Min. Print Contrast: Minimum 25%
    Symbologies Supported: 1D: All major codes 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)
    Ranges4:
    DL Focus Near Far
    5 mil Code 39 2.1 in./5.3 cm 7.5 in./19.1 cm
    100% UPC/EAN 1.6 in./4.1 cm 15.5 in./39.4 cm
    6.7 mil PDF417 3.4 in./8.6 cm 7.1 in./18.0 cm

    Communication

    Bluetooth®1: Bluetooth® Version 4.2
    Bluetooth® Pairing: SPP Profile,HID Profile, Apple iAP2, Bluetooth® Low Energy.
    Bluetooth® Power: TX Power +12dBm.
    Bluetooth® Range4: Up to 100m.
    Bluetooth® Pairing: Simple Secure Pairing, NFC OOB Pairing
    Direct USB USB connection to handheld terminal via ePop-Loq® cases (separate purchase)

    Peripherals and Accessories

    External Interface: Custom connector – requires 2128 Docking Station for battery charging, and USB connectivity.
    USB Operating Modes: Tethered for real time data capture in conjunction with SmartWedge software. Download of stored scan data.
    Optional desktop charger: TSL® 2128 Docking Station (separate purchase).
    Power Handle: Alternative trigger handle gives approximately 3X the original battery capacity.

    Regulatory

    General: Approved for use in the US, Canada, Europe, Australia, Brazil, China, Hong Kong, Japan, Malaysia, Singapore, South Korea, Taiwan, Thailand and UAE.
    Electrical Safety: Certified to UL60950-1, CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1
    EMI/RFI: USA: FCC Part 15 Canada: ICES 003 Class B EU: EN 301 489-3, EN 301 489-1, EN 301 489-17, EN 302-208, EN55022 Class B, EN55024
    Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825- 1/EN60825-1, 21CFR1040.10

    Warranty

    The TSL 2128 reader is warranted against defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions.

    Notes

    1 Compatible Bluetooth® stack required in the Host device

    2 Tag Read/Write performance is dependent on tag type, items tagged, number of tags in the field and other radio and environmental factors

    3 33 dBm EIRP or maximum for regulatory region

    4 Artificial lighting can affect scanning performance

    iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.


  • 2128 Bluetooth® UHF RFID Reader with 2D Imager
    2128-ES0 (ETSI)

    2128 Bluetooth® UHF Reader with 2D Imager, UHF Antenna, Trigger Handle, Battery

    2128-AS0 (FCC)

    2128 Bluetooth® UHF Reader with 2D Imager, UHF Antenna, Trigger Handle, Battery

    2128-AS0 and…

    2128-AU-CONFIGURATION – 2128 Configuration for operation in Australia.

    2128-MX-CONFIGURATION – 2128 Configuration for operation in Mexico.

    (Add one of the configuration codes above to your Purchase Order as a zero-value line item.)

    2128 Bluetooth® UHF RFID Reader (No Barcode Imager)

    2128-EX0 (ETSI)

    2128 Bluetooth® RFID Reader with UHF Antenna (No Imager), Trigger Handle, Battery
    2128-AX0 (FCC)

    2128 Bluetooth® RFID Reader with UHF Antenna (No Imager), Trigger Handle, Battery

    2128-AX0 and…

    2128-AU-CONFIGURATION – 2128 Configuration for operation in Australia.

    2128-MX-CONFIGURATION – 2128 Configuration for operation in Mexico.

    (Add one of the configuration codes above to your Purchase Order as a zero-value line item.)

    Charging Accessories:
    2128-CRD-01-KIT 2128 Docking Station, Power Supply and Mini USB Cable



    Please Read – 2128 Ordering Information (PDF)
